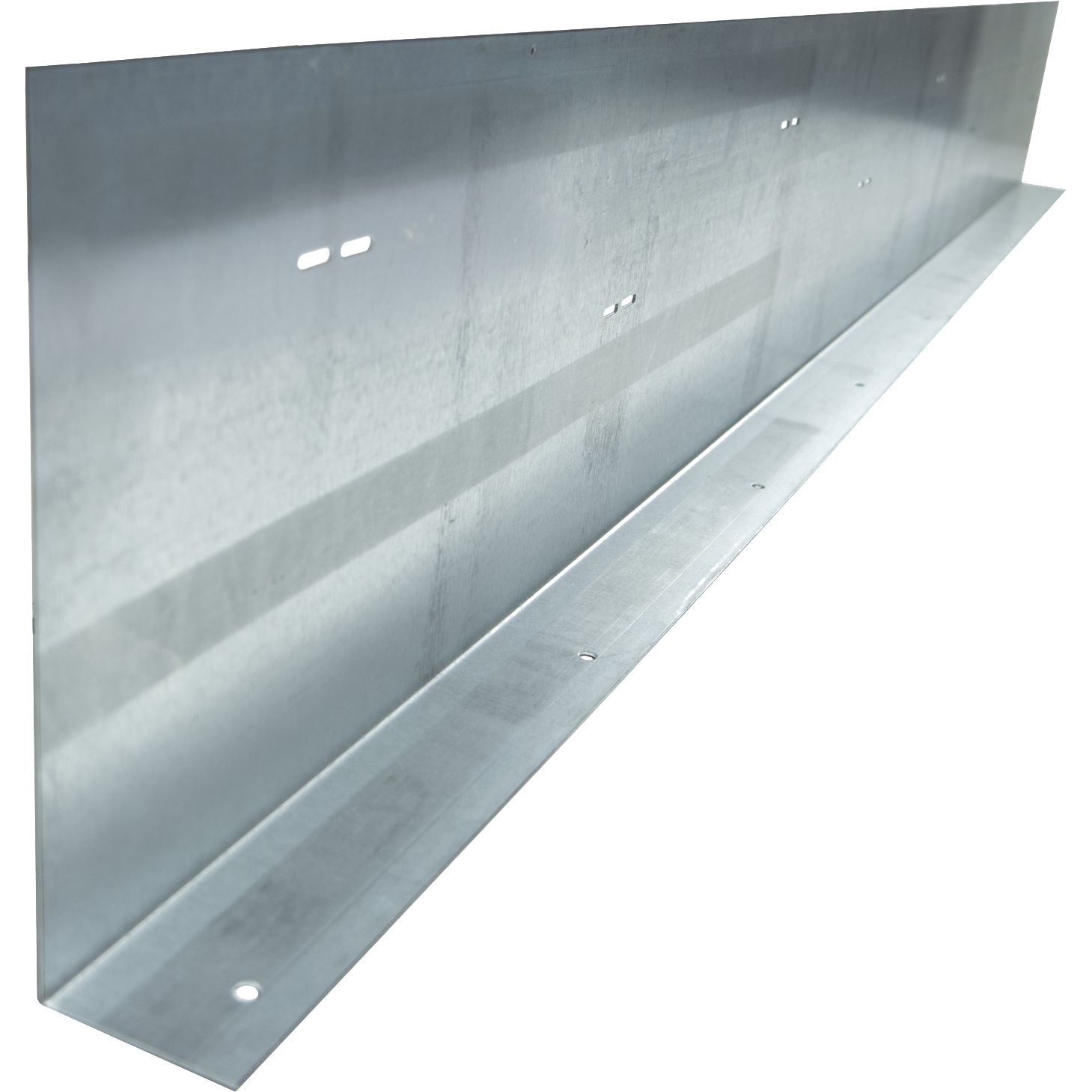

Metal formwork for concrete 90°

Edge formwork for use in combination with cast floor constructions (wide panel/channel panel/combination floor). The metal edge formwork is placed on the inner leaves and/or partition walls. In combination with the universal corner pieces it can be used to create internal or external corners.

Thickness

1,5 mm

1,25 mm

Height

Details & dimensions

Article

Article number113280

EAN code8714318060602

Packaging

EAN code8714318060602

Packaging1 piece

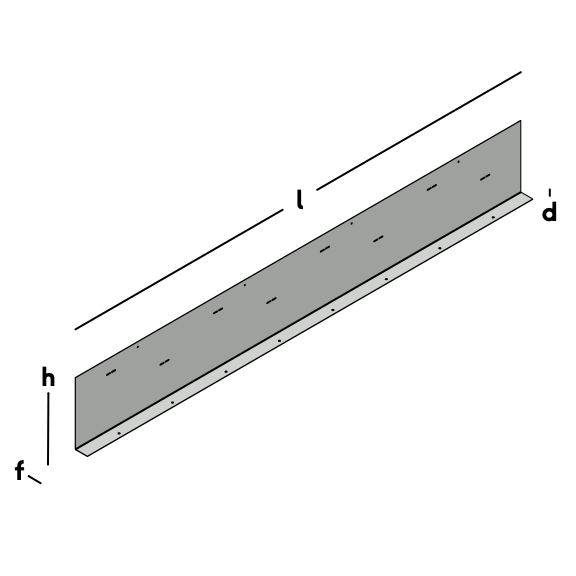

Dimensions

Metal formwork for concrete 90°

Length (l)2000 mm

Thickness (d)1,5 mm

Height (h)280 mm

Hole pattern4/5-8/7

Degrees ° angle-put90 °

Flange (f)60 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte	Dikte	Hoogte	Gatenpatroon	Graden ° hoek-gezet	Vloerhoogte	Flens	Materiaal	Staalkwaliteit
Metalen randkist 90°	113230	1 piece	2000 mm	1,5 mm	230 mm	4/5-8/7	90 °	230 mm	60 mm	Staal	DX51
Metalen randkist 90°	113240	1 piece	2000 mm	1,5 mm	240 mm	4/5-8/7	90 °	240 mm	60 mm	Staal	DX51
Metalen randkist 90°	113250	1 piece	2000 mm	1,5 mm	250 mm	4/5-8/7	90 °	250 mm	70 mm	Staal	DX51
Metalen randkist 90°	113260	1 piece	2000 mm	1,5 mm	260 mm	4/5-8/7	90 °	260 mm	60 mm	Staal	DX51
Metalen randkist 90°	113270	1 piece	2000 mm	1,5 mm	270 mm	4/5-8/7	90 °	270 mm	65 mm	Staal	DX51
Metalen randkist 90°	113280	1 piece	2000 mm	1,5 mm	280 mm	4/5-8/7	90 °	280 mm	60 mm	Staal	DX51
Metalen randkist 90°	113290	1 piece	2000 mm	1,5 mm	290 mm	4/5-8/7	90 °	290 mm	70 mm	Staal	DX51
Metalen randkist 90°	113300	1 piece	2000 mm	1,5 mm	300 mm	4/5-8/7	90 °	300 mm	60 mm	Staal	DX51
Metalen randkist 90°	113310	1 piece	2000 mm	1,5 mm	310 mm	4/5-8/7	90 °	310 mm	70 mm	Staal	DX51
Metalen randkist 90°	113320	1 piece	2000 mm	1,5 mm	320 mm	4/5-8/7	90 °	320 mm	60 mm	Staal	DX51
Metalen randkist 90°	113330	1 piece	2000 mm	1,5 mm	330 mm	4/5-8/7	90 °	330 mm	80 mm	Staal	DX51
Metalen randkist 90°	113340	1 piece	2000 mm	1,5 mm	340 mm	4/5-8/7	90 °	340 mm	70 mm	Staal	DX51
Metalen randkist 90°	113350	1 piece	2000 mm	1,5 mm	350 mm	4/5-8/7	90 °	350 mm	60 mm	Staal	DX51
Metalen randkist 90°	113360	1 piece	2000 mm	1,5 mm	360 mm	4/5-8/7	90 °	360 mm	70 mm	Staal	DX51
Metalen randkist 90°	113370	1 piece	2000 mm	1,5 mm	370 mm	4/5-8/7	90 °	370 mm	60 mm	Staal	DX51
Metalen randkist 90°	113380	1 piece	2000 mm	1,5 mm	380 mm	4/5-8/7	90 °	380 mm	60 mm	Staal	DX51
Metalen randkist 90°	113390	1 piece	2000 mm	1,5 mm	390 mm	4/5-8/7	90 °	390 mm	85 mm	Staal	DX51
Metalen randkist 90°	113400	1 piece	2000 mm	1,5 mm	400 mm	4/5-8/7	90 °	400 mm	75 mm	Staal	DX51
Metalen randkist 90°	113410	1 piece	2000 mm	1,5 mm	410 mm	4/5-8/7	90 °	410 mm	65 mm	Staal	DX51
Metalen randkist 90°	113420	1 piece	2000 mm	1,5 mm	420 mm	4/5-8/7	90 °	420 mm	80 mm	Staal	DX51
Metalen randkist 90°	113430	1 piece	2000 mm	1,5 mm	430 mm	4/5-8/7	90 °	430 mm	70 mm	Staal	DX51
Metalen randkist 90°	113440	1 piece	2000 mm	1,5 mm	440 mm	4/5-8/7	90 °	440 mm	60 mm	Staal	DX51
Metalen randkist 90°	113450	1 piece	2000 mm	1,5 mm	450 mm	4/5-8/7	90 °	450 mm	75 mm	Staal	DX51
Metalen randkist 90°	113460	1 piece	2000 mm	1,5 mm	460 mm	4/5-8/7	90 °	460 mm	65 mm	Staal	DX51
Metalen randkist 90°	113470	1 piece	2000 mm	1,5 mm	470 mm	4/5-8/7	90 °	470 mm	80 mm	Staal	DX51
Metalen randkist 90°	113490	1 piece	2000 mm	1,5 mm	490 mm	4/5-8/7	90 °	490 mm	60 mm	Staal	DX51
Metalen randkist 90°	106170	1 piece	2000 mm	1,25 mm	170 mm	8/7	90 °	170 mm	130 mm	Staal	DX51
Metalen randkist 90°	106180	1 piece	2000 mm	1,25 mm	180 mm	8/7	90 °	180 mm	120 mm	Staal	DX51
Metalen randkist 90°	106190	1 piece	2000 mm	1,25 mm	190 mm	8/7	90 °	190 mm	110 mm	Staal	DX51
Metalen randkist 90°	106200	1 piece	2000 mm	1,25 mm	200 mm	8/7	90 °	200 mm	100 mm	Staal	DX51
Metalen randkist 90°	113480	1 piece	2000 mm	1,5 mm	480 mm	4/5-8/7	90 °	480 mm	70 mm	Staal	DX51
