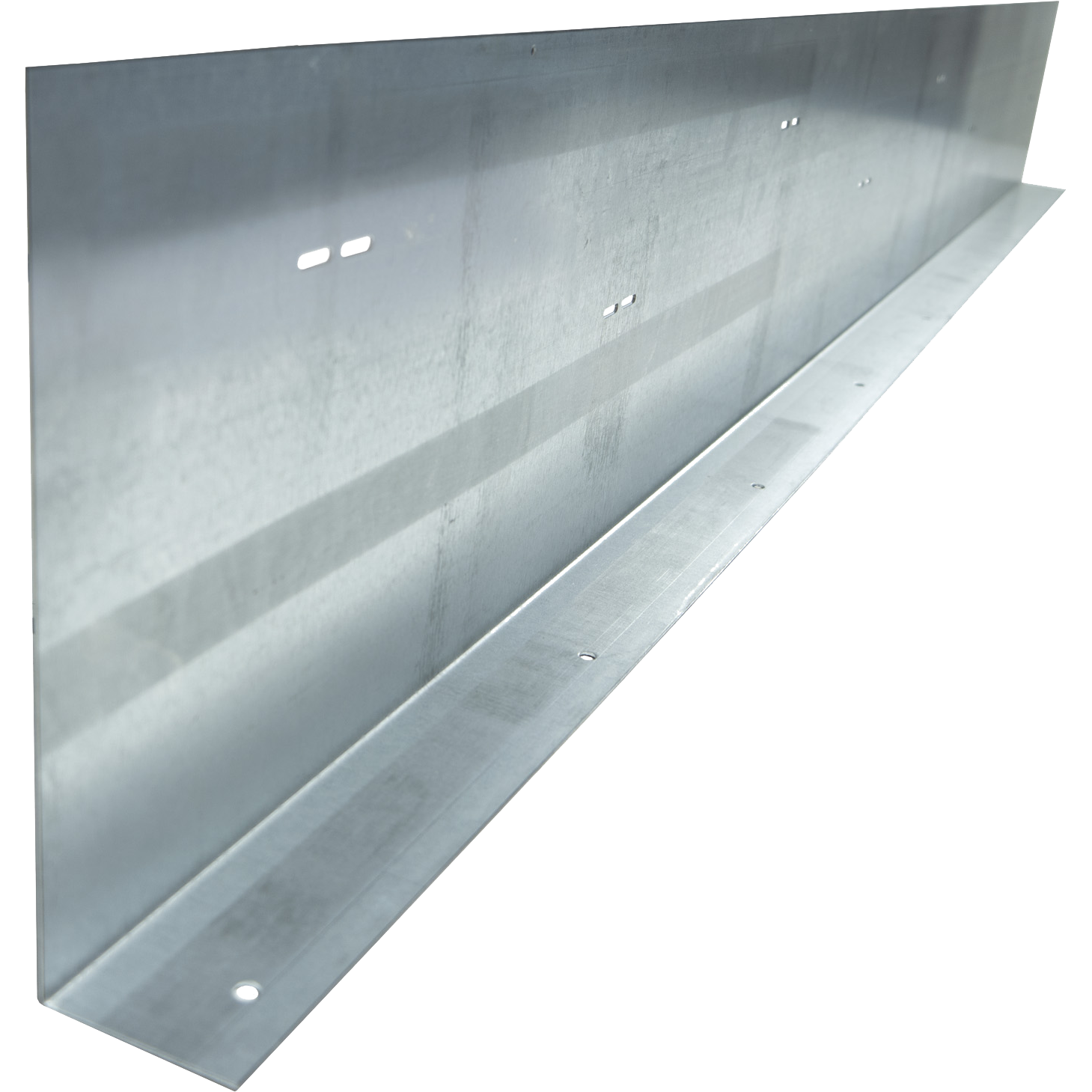

Metal formwork for concrete 90°

Edge formwork for use in combination with cast floor constructions (wide panel/channel panel/combination floor). The metal edge formwork is placed on the inner leaves and/or partition walls. In combination with the universal corner pieces it can be used to create internal or external corners.

Thickness

1,5 mm

1,25 mm

Height

Details & dimensions

Article

Article number113250

EAN code8714318080235

Packaging

EAN code8714318080235

Packaging1 piece

Dimensions

Metal formwork for concrete 90°

Length (l)2000 mm

Thickness (d)1,5 mm

Height (h)250 mm

Hole pattern4/5-8/7

Degrees ° angle-put90 °

Flange (f)70 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Lengte	Dikte	Hoogte	Gatenpatroon	Graden ° hoek-gezet	Vloerhoogte	Flens	Materiaal	Staalkwaliteit
Metalen randkist 90°	113230	1 piece	2000 mm	1,5 mm	230 mm	4/5-8/7	90 °	230 mm	60 mm	Staal	DX51
Metalen randkist 90°	113240	1 piece	2000 mm	1,5 mm	240 mm	4/5-8/7	90 °	240 mm	60 mm	Staal	DX51
Metalen randkist 90°	113250	1 piece	2000 mm	1,5 mm	250 mm	4/5-8/7	90 °	250 mm	70 mm	Staal	DX51
Metalen randkist 90°	113260	1 piece	2000 mm	1,5 mm	260 mm	4/5-8/7	90 °	260 mm	60 mm	Staal	DX51
Metalen randkist 90°	113270	1 piece	2000 mm	1,5 mm	270 mm	4/5-8/7	90 °	270 mm	65 mm	Staal	DX51
Metalen randkist 90°	113280	1 piece	2000 mm	1,5 mm	280 mm	4/5-8/7	90 °	280 mm	60 mm	Staal	DX51
Metalen randkist 90°	113290	1 piece	2000 mm	1,5 mm	290 mm	4/5-8/7	90 °	290 mm	70 mm	Staal	DX51
Metalen randkist 90°	113300	1 piece	2000 mm	1,5 mm	300 mm	4/5-8/7	90 °	300 mm	60 mm	Staal	DX51
Metalen randkist 90°	113310	1 piece	2000 mm	1,5 mm	310 mm	4/5-8/7	90 °	310 mm	70 mm	Staal	DX51
Metalen randkist 90°	113320	1 piece	2000 mm	1,5 mm	320 mm	4/5-8/7	90 °	320 mm	60 mm	Staal	DX51
Metalen randkist 90°	113330	1 piece	2000 mm	1,5 mm	330 mm	4/5-8/7	90 °	330 mm	80 mm	Staal	DX51
Metalen randkist 90°	113340	1 piece	2000 mm	1,5 mm	340 mm	4/5-8/7	90 °	340 mm	70 mm	Staal	DX51
Metalen randkist 90°	113350	1 piece	2000 mm	1,5 mm	350 mm	4/5-8/7	90 °	350 mm	60 mm	Staal	DX51
Metalen randkist 90°	113360	1 piece	2000 mm	1,5 mm	360 mm	4/5-8/7	90 °	360 mm	70 mm	Staal	DX51
Metalen randkist 90°	113370	1 piece	2000 mm	1,5 mm	370 mm	4/5-8/7	90 °	370 mm	60 mm	Staal	DX51
Metalen randkist 90°	113380	1 piece	2000 mm	1,5 mm	380 mm	4/5-8/7	90 °	380 mm	60 mm	Staal	DX51
Metalen randkist 90°	113390	1 piece	2000 mm	1,5 mm	390 mm	4/5-8/7	90 °	390 mm	85 mm	Staal	DX51
Metalen randkist 90°	113400	1 piece	2000 mm	1,5 mm	400 mm	4/5-8/7	90 °	400 mm	75 mm	Staal	DX51
Metalen randkist 90°	113410	1 piece	2000 mm	1,5 mm	410 mm	4/5-8/7	90 °	410 mm	65 mm	Staal	DX51
Metalen randkist 90°	113420	1 piece	2000 mm	1,5 mm	420 mm	4/5-8/7	90 °	420 mm	80 mm	Staal	DX51
Metalen randkist 90°	113430	1 piece	2000 mm	1,5 mm	430 mm	4/5-8/7	90 °	430 mm	70 mm	Staal	DX51
Metalen randkist 90°	113440	1 piece	2000 mm	1,5 mm	440 mm	4/5-8/7	90 °	440 mm	60 mm	Staal	DX51
Metalen randkist 90°	113450	1 piece	2000 mm	1,5 mm	450 mm	4/5-8/7	90 °	450 mm	75 mm	Staal	DX51
Metalen randkist 90°	113460	1 piece	2000 mm	1,5 mm	460 mm	4/5-8/7	90 °	460 mm	65 mm	Staal	DX51
Metalen randkist 90°	113470	1 piece	2000 mm	1,5 mm	470 mm	4/5-8/7	90 °	470 mm	80 mm	Staal	DX51
Metalen randkist 90°	113490	1 piece	2000 mm	1,5 mm	490 mm	4/5-8/7	90 °	490 mm	60 mm	Staal	DX51
Metalen randkist 90°	106170	1 piece	2000 mm	1,25 mm	170 mm	8/7	90 °	170 mm	130 mm	Staal	DX51
Metalen randkist 90°	106180	1 piece	2000 mm	1,25 mm	180 mm	8/7	90 °	180 mm	120 mm	Staal	DX51
Metalen randkist 90°	106190	1 piece	2000 mm	1,25 mm	190 mm	8/7	90 °	190 mm	110 mm	Staal	DX51
Metalen randkist 90°	106200	1 piece	2000 mm	1,25 mm	200 mm	8/7	90 °	200 mm	100 mm	Staal	DX51
Metalen randkist 90°	113480	1 piece	2000 mm	1,5 mm	480 mm	4/5-8/7	90 °	480 mm	70 mm	Staal	DX51
