Adjustable window bracket

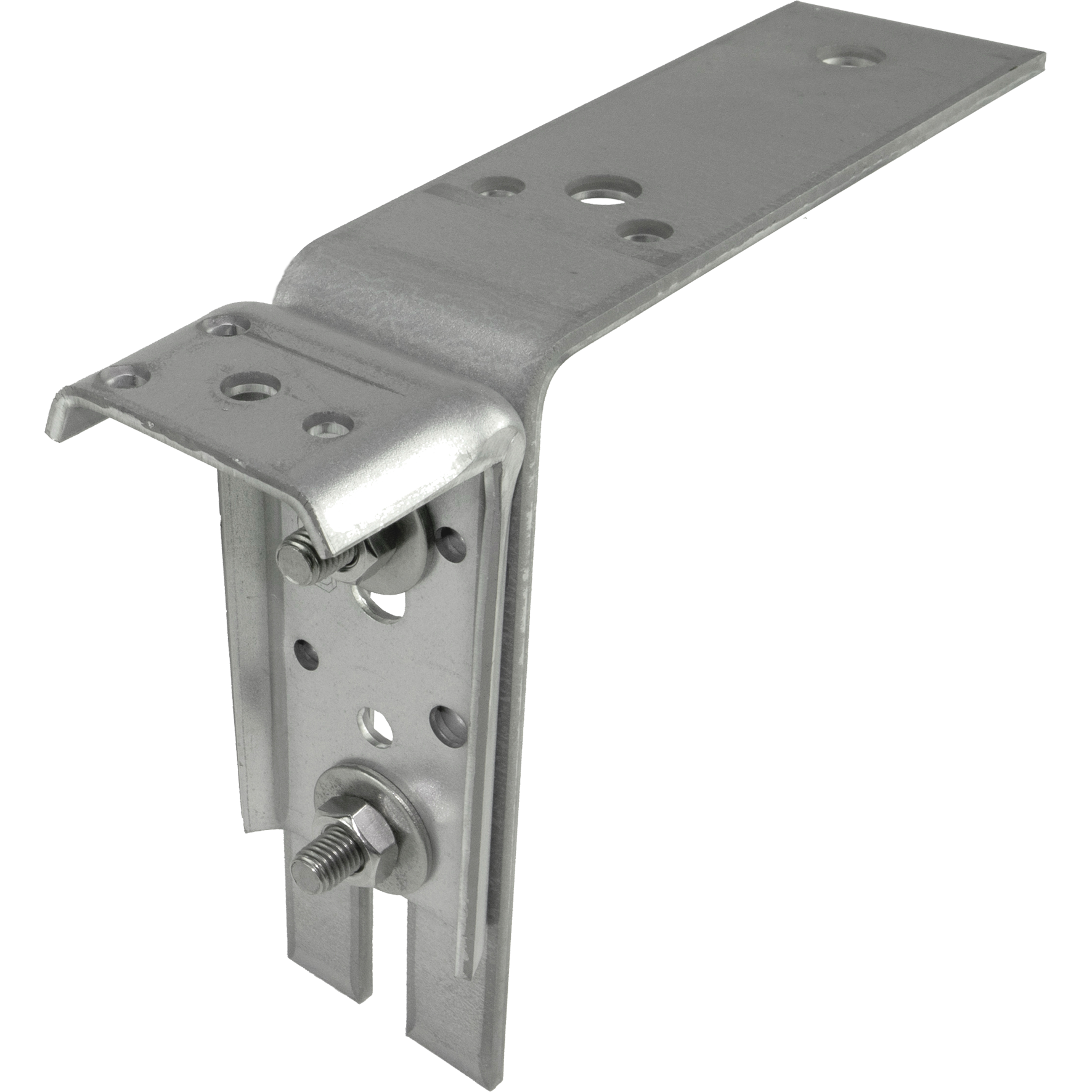

Adjustable window-floor connection consisting of a floor corner, a corner anchor, and a set of lock bolts. The floor corner is mounted on the floor edge. The corner anchor is mounted against the base of the windows or doors and is adjustable to the edge of the floor.

Length 1
70 mm
175 mm
Length 2
140 mm
175 mm
180 mm
Width 1
60 mm
65 mm
Width 2
60 mm
65 mm
72 mm
Thickness 1
4 mm
5 mm
Thickness 2
4 mm
5 mm
6 mm
Slotted hole
Surface treatment
304
SV

Details & dimensions

Article

Article number0724806
EAN code8714318082253

Packaging

EAN code8714318082260
Packaging10 per box
Length330 mm
Width255 mm
Height90 mm

Dimensions

Adjustable window bracket

Length 1 (l1)175 mm
Length 2 (l2)175 mm
Width 1 (b1)60 mm
Width 2 (b2)65 mm
Thickness 1 (d1)4 mm
Thickness 2 (d2)4 mm
Slotted hole1/13x30-12x145 open mm
Hole pattern5/7-6/9-3/13
Length 3 (l3) (l3)50 mm
Length 4 (l4)150 mm
Adjustment range + level20 mm
Adjustment range -level100 mm
Attachmentsincluding 2 carriage bolts 304
TypeXL50
MaterialSteel
Steel QualityS350
Surface treatmentSV
