Adjustable frame bracket
Adjustable window-floor connection consisting of a floor corner, a corner anchor, and a set of lock bolts. The floor corner is secured to the floor. The corner anchor is mounted against the bottom lintel of windows or doors and is adjustable to the floor edge
Length 1
Length 2
Width 1
Thickness 1
Thickness 2
Slotted hole
Surface treatment
Details & dimensions
Article
Article number0724801
EAN code8714318059361
Packaging
EAN code8714318059378
Packaging10 per box
Length310 mm
Width260 mm
Height70 mm

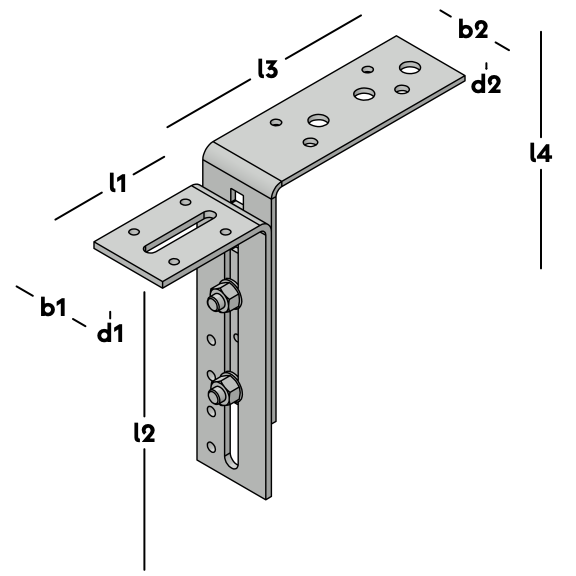

Dimensions
Adjustable frame bracket
Length 1 (l1)95 mm
Length 2 (l2)210 mm
Width 1 (b1)60 mm
Width 2 (b2)60 mm
Thickness 1 (d1)4 mm
Thickness 2 (d2)5 mm
Slotted hole4/12x12-9x60-12x180 mm
Hole pattern1/5-4/6-3/13
Length 3 (l3) (l3)175 mm
Length 4 (l4)180 mm
Adjustment range + level80 mm
Adjustment range -level60 mm
Attachmentsincluding 2 carriage bolts 304
TypeA-ZM
MaterialSteel
Steel QualityS350
Surface treatment
