Kozijnstelhoek
Kozijnstelhoek

Adjustable window bracket

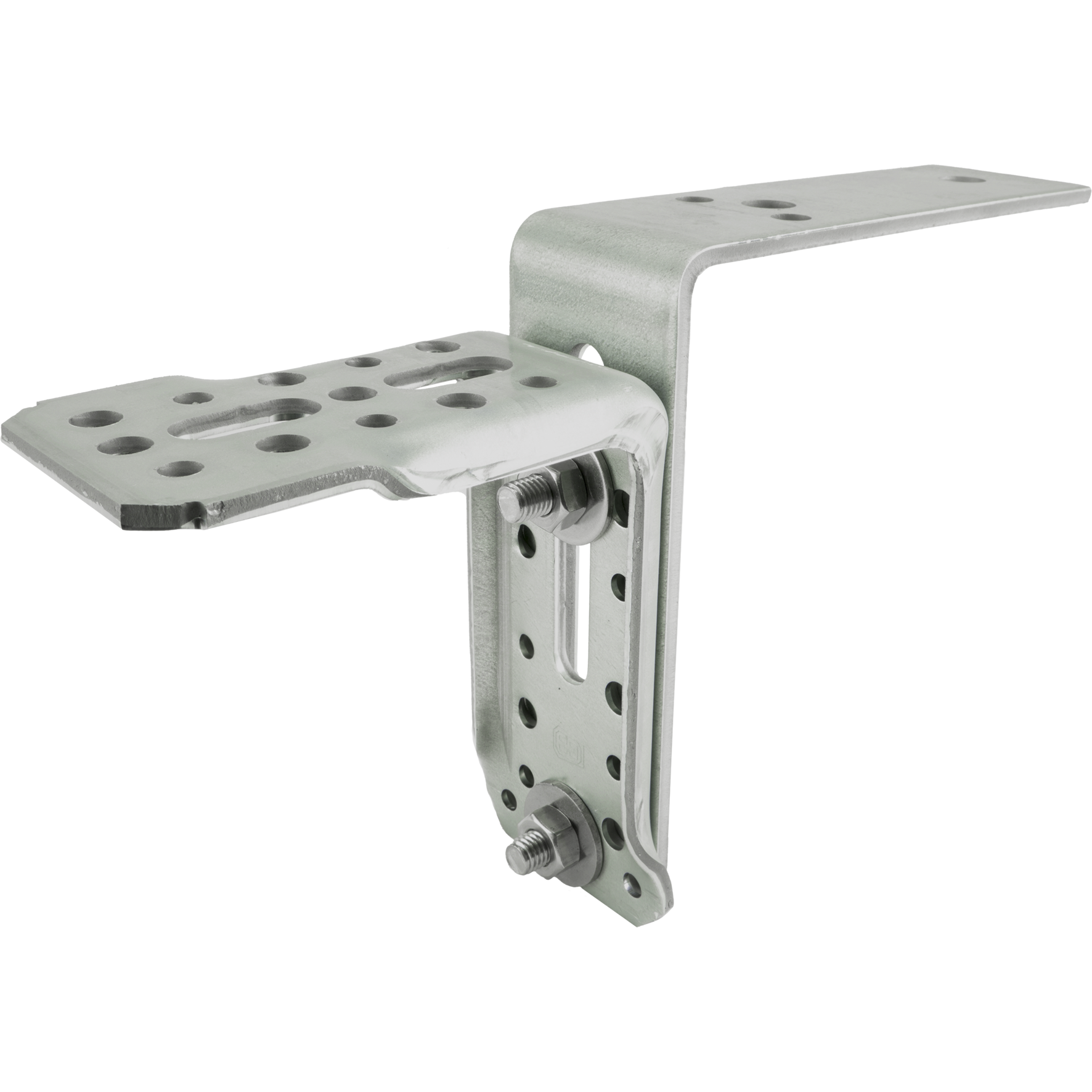

Adjustable window-floor connection consisting of a floor corner, a corner anchor, and a set of lock bolts. The floor corner is secured to the floor. The XL corner anchor is mounted against the bottom lintel of windows or doors and adjustable to the floor edge

Length 1
70 mm
175 mm
Length 2
140 mm
175 mm
180 mm
Width 1
60 mm
65 mm
Width 2
60 mm
65 mm
72 mm
Thickness 1
4 mm
5 mm
Thickness 2
4 mm
5 mm
6 mm
Slotted hole
Surface treatment
304
SV

Details & dimensions

Article

Article number0724809
EAN code8714318046644

Packaging

EAN code8714318046651
Packaging10 per box
Length340 mm
Width260 mm
Height85 mm

Dimensions

Adjustable window bracket

Length 1175 mm
Length 2175 mm
Width 160 mm
Width 272 mm
Thickness 15 mm
Thickness 25 mm
Slotted hole2/30x13-145x12 open mm
Hole pattern10/7-8/9-2/13-2/14
Length 3 (l3)125 mm
Length 4150 mm
Adjustment range + level50 mm
Adjustment range -level80 mm
Attachmentsincluding 2 carriage bolts 304
TypeXL125
MaterialSteel
Steel QualityS350
Surface treatmentSV
