Adjustable frame bracket

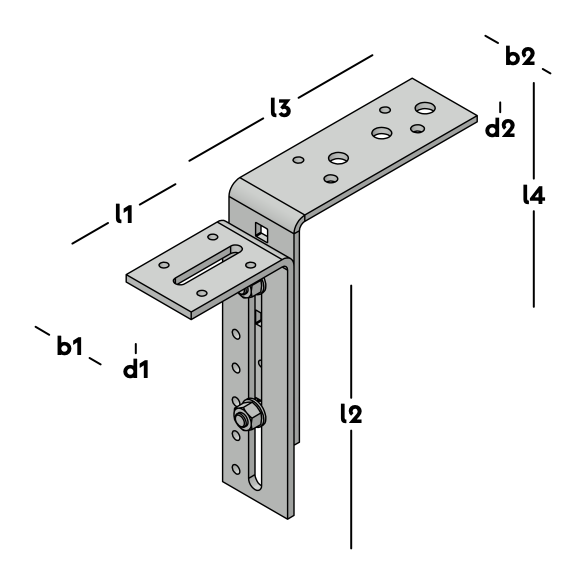

Adjustable window-floor connection consisting of a floor corner, a corner anchor, and a set of lock bolts. The floor corner is secured to the floor. The corner anchor is mounted against the bottom lintel of windows or doors and is adjustable to the floor edge

Length 1
70 mm
175 mm
Length 2
140 mm
175 mm
180 mm
Width 1
60 mm
65 mm
Width 2
60 mm
65 mm
72 mm
Thickness 1
4 mm
5 mm
Thickness 2
4 mm
5 mm
6 mm
Slotted hole
Surface treatment
304
SV

Details & dimensions

Article

Article number0724802
EAN code8714318022532

Packaging

EAN code8714318126308
Packaging10 per box
Length310 mm
Width260 mm
Height70 mm

Dimensions

Adjustable frame bracket

Length 1175 mm
Length 2180 mm
Width 160 mm
Width 260 mm
Thickness 15 mm
Thickness 26 mm
Slotted hole4/12x12-60x9-180x12 mm
Hole pattern1/5-4/6-3/13
Length 3 (l3)95 mm
Length 4210 mm
Adjustment range + level80 mm
Adjustment range -level60 mm
Attachmentsincluding 2 carriage bolts 304
TypeA-SV
MaterialSteel
Steel QualityS350
Surface treatmentSV
