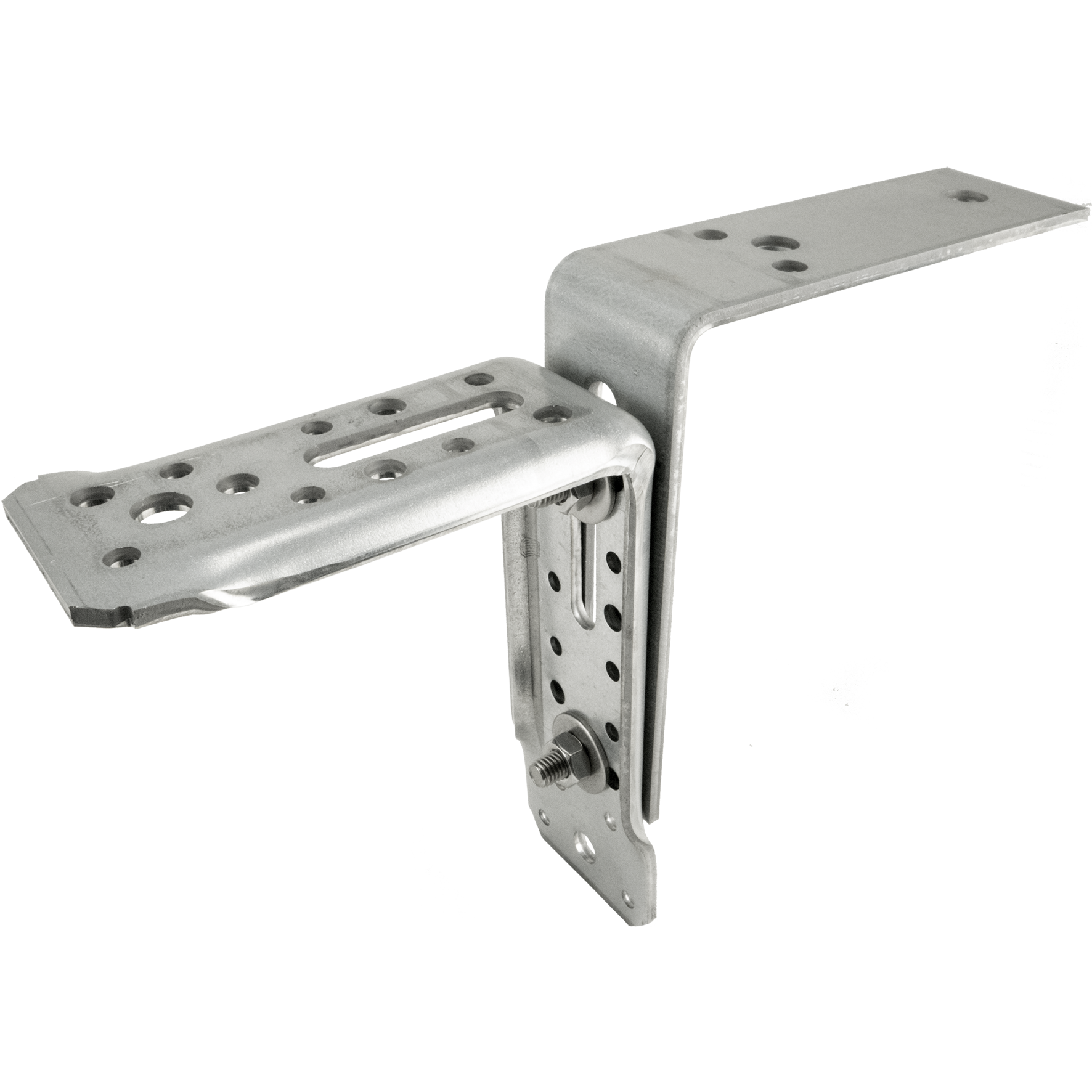

Adjustable window bracket

Adjustable window-floor connection consisting of a floor corner, a corner anchor, and a set of lock bolts. The floor corner is secured to the floor. The XL corner anchor is mounted against the bottom lintel of windows or doors and adjustable to the floor edge

Length 1
70 mm
175 mm
Length 2
140 mm
175 mm
180 mm
Width 1
60 mm
65 mm
Width 2
60 mm
65 mm
72 mm
Thickness 1
4 mm
5 mm
Thickness 2
4 mm
5 mm
6 mm
Slotted hole
Surface treatment
304
SV

Details & dimensions

Article

Article number07248095
EAN code8714318079086

Packaging

EAN code8714318079093
Packaging10 per box
Length330 mm
Width255 mm
Height85 mm

Dimensions

Adjustable window bracket

Length 1175 mm
Length 2175 mm
Width 160 mm
Width 272 mm
Thickness 15 mm
Thickness 25 mm
Slotted hole2/30x13-145x11 open mm
Hole pattern16/7-18/9-5/13-2/9-2/13
Length 3 (l3)150 mm
Length 4200 mm
Adjustment range + level100 mm
Adjustment range -level80 mm
Attachmentsincluding 2 carriage bolts 304
TypeXL150
MaterialSteel
Steel QualityS350
Surface treatmentSV
