Adjustable window bracket

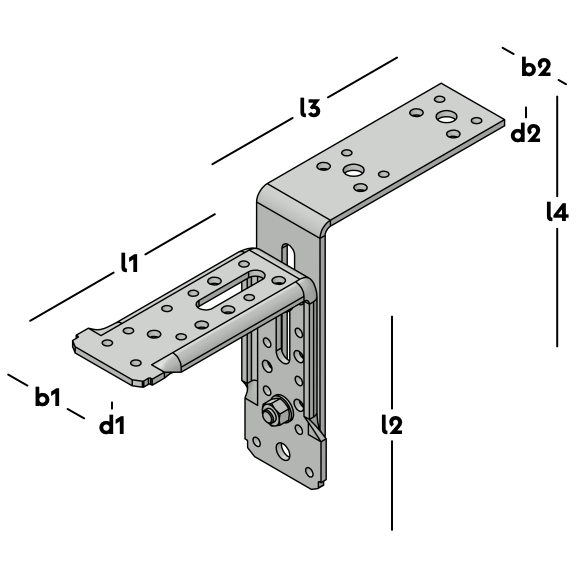

Adjustable window-floor connection consisting of a floor corner, a corner anchor, and a set of lock bolts. The floor corner is secured to the floor. The XL corner anchor is mounted against the bottom lintel of windows or doors and adjustable to the floor edge
Length 1
Length 2
Width 1
Width 2
Thickness 1
Thickness 2
Slotted hole
Surface treatment
Details & dimensions
Article
Article number07248096
EAN code8714318079055
Packaging
EAN code8714318079062
Packaging10 per box
Length330 mm
Width260 mm
Height85 mm
Dimensions
Adjustable window bracket
Length 1 (l1)175 mm
Length 2 (l2)175 mm
Width 1 (b1)60 mm
Width 2 (b2)72 mm
Thickness 1 (d1)5 mm
Thickness 2 (d2)5 mm
Slotted hole2/30x13-145x11 open mm
Hole pattern16/7-18/9-5/13-2/9-2/13
Length 3 (l3) (l3)175 mm
Length 4 (l4)175 mm
Adjustment range + level90 mm
Adjustment range -level80 mm
Attachmentsincluding 2 carriage bolts 304
TypeXL175
MaterialSteel
Steel QualityS350
Surface treatment
