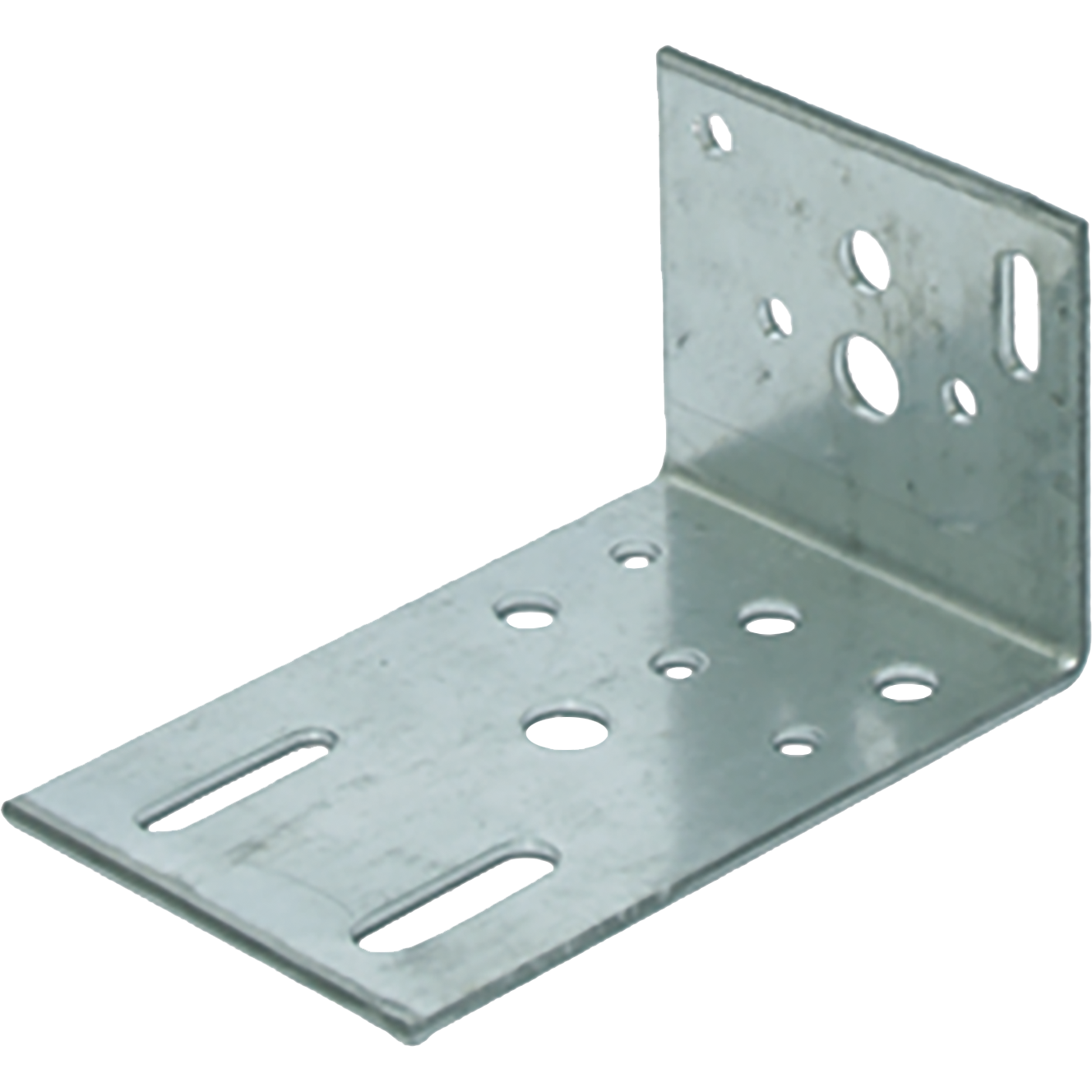

Angle bracket

Corner anchor for mounting window frames to posts and lintels. Universally applicable and compatible with common fasteners.

Length

136 mm

224 mm

Length 1

Length 2

Width

Width 1

75 mm

114 mm

Width 2

75 mm

140 mm

Thickness

Slotted hole

Slotted holes diagonal

Material

RVS 304

RVS 316

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number07249

EAN code8714318040758

Packaging

EAN code8714318114350

Packaging100 per box

Length270 mm

Width220 mm

Height70 mm

Dimensions

Angle bracket

Length 1 (l1)50 mm

Length 2 (l2)90 mm

Width (b)60 mm

Thickness (d)2,5 mm

Slotted hole12x4-24x6-24x8,5 mm

Hole pattern6/4-4/6-2/9

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 18

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Length 1	Length 2	Width	Width 1	Width 2	Thickness	Slotted hole	Hole pattern	Slotted holes diagonal	Square hole	Material	Steel Quality	Surface treatment
Angle bracket	070220	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	Steel	S350
Angle bracket ridged	070229	50 per box	-	150 mm	150 mm	60 mm	-	-	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	Steel	S350
Angle bracket ridged	070230	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	Steel	S350
Angle bracket	070301	100 per box	-	40 mm	60 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	Steel	S350
Angle bracket	070302	100 per box	-	80 mm	100 mm	60 mm	-	-	2.5 mm	2/50x13 mm	12/5-2/7	-	-	Steel	S350
	01711	30 per box	136 mm	-	-	-	75 mm	75 mm	2,5 mm	-	12/7-2/13	-	-	Steel	S350
Angle bracket	07122	100 per box	-	90 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket ridged	07123	100 per box	-	90 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket ridged	07124	100 per box	-	60 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	RVS 316	W-Nr.:1.4404	-
Angle bracket	07130	100 per box	-	40 mm	60 mm	60 mm	-	-	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07131	100 per box	-	40 mm	60 mm	60 mm	-	-	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	RVS 316	W-Nr.:1.4404	-
Angle bracket	07132	100 per box	-	40 mm	100 mm	60 mm	-	-	2 mm	40x12 mm	12/4-1/11	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07136	100 per box	-	50 mm	50 mm	60 mm	-	-	2 mm	30x9-30x12 mm	12/4	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07149	100 per box	-	50 mm	90 mm	60 mm	-	-	2 mm	12x4-24x6-24x8,5 mm	6/4-4/6-2/9	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	072215	100 per box	-	70 mm	70 mm	60 mm	-	-	2 mm	25x11 mm	1/9-8/7-4/5	-	-	Steel	DX51
Angle bracket ridged	072216	100 per box	-	70 mm	70 mm	60 mm	-	-	2 mm	25x11 mm	1/9-8/7-4/5	-	-	Steel	DX51
Angle bracket	072220	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	Steel	DX51
Angle bracket	072222	100 per box	-	90 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	Steel	DX51
Angle bracket ridged	072230	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	Steel	DX51
Angle bracket ridged	072232	100 per box	-	90 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	Steel	DX51
Angle bracket ridged	072233	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	11x30 mm	10/4-6/6-4/9-1/11	-	-	Steel	DX51
Fish plate	07225	50 per box	-	125 mm	125 mm	46 mm	-	-	2,5 mm	20x10 mm	10/4-6/6-1/11	-	-	Steel	DX51
Fish plate ridged	07226	50 per box	-	125 mm	125 mm	60 mm	-	-	2,5 mm	20x10 mm	10/4-6/6-1/11	-	-	Steel	DX51
Fish plate ridged	072261	50 per box	-	125 mm	125 mm	46 mm	-	-	2,5 mm	10x20 mm	10/4-6/6-1/11	-	-	Steel	DX51
Angle bracket	07228	50 per box	-	150 mm	150 mm	60 mm	-	-	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	Steel	DX51
Angle bracket ridged	07229	50 per box	-	150 mm	150 mm	60 mm	-	-	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	Steel	DX51
Angle bracket ridged	07244	100 per box	-	125 mm	125 mm	30 mm	-	-	2 mm	-	10/4-2/9	-	-	Steel	DX51
Angle bracket ridged	07245	100 per box	-	160 mm	160 mm	30 mm	-	-	2 mm	-	12/4-1/7-2/9	-	-	Steel	DX51
Angle bracket	07249	100 per box	-	50 mm	90 mm	60 mm	-	-	2,5 mm	12x4-24x6-24x8,5 mm	6/4-4/6-2/9	-	-	Steel	DX51
Angle bracket 100°	072491	100 per box	-	50 mm	90 mm	60 mm	-	-	2,5 mm	2/30x10,5 mm	8/5	-	-	Steel	DX51
Angle bracket	072492	100 per box	-	50 mm	90 mm	60 mm	-	-	2,5 mm	4x12-6x24-8,5x24 mm	6/4-4/6-2/9	-	-	Steel	DX51
Angle bracket	072300	50 per box	-	27 mm	68 mm	60 mm	-	-	2 mm	40x13 mm	6/5,3-1/9	-	-	Steel	DX51
Angle bracket	072301	100 per box	-	40 mm	60 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	Steel	DX51
Angle bracket	072302	100 per box	-	40 mm	60 mm	60 mm	-	-	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	Steel	DX51
Angle bracket	072303	100 per box	-	40 mm	60 mm	60 mm	-	-	2,5 mm	11x30 mm	10/4-2/6-2/9-1/11	-	-	Steel	DX51
Angle bracket	07231	100 per box	-	60 mm	60 mm	60 mm	-	-	2 mm	2/30x11 mm	10/4,5-4/6,5	-	-	Steel	DX51
Angle bracket	07232	100 per box	-	40 mm	100 mm	60 mm	-	-	2,5 mm	40x12 mm	12/4-1/11	-	-	Steel	DX51
Angle bracket	07233	100 per box	-	50 mm	75 mm	60 mm	-	-	2 mm	-	8/4-4/6-2/9	-	-	Steel	DX51
Angle bracket	07234	100 per box	-	40 mm	80 mm	46 mm	-	-	2,5 mm	30x9 mm	6/6	-	-	Steel	DX51
Angle bracket	072350	100 per box	-	50 mm	110 mm	60 mm	-	-	3 mm	32x11-2/40x11 dia. mm	10/5	2/50x13 mm	-	Steel	S350
Angle bracket	072354	100 per box	-	55 mm	85 mm	60 mm	-	-	2,5 mm	9x32-9x50 mm	10/5	-	-	Steel	S350
Angle bracket	072355	100 per box	-	60 mm	80 mm	60 mm	-	-	2,5 mm	32x13-50x13 mm	8/4,5	-	-	Steel	DX51
Angle bracket	072356	100 per box	-	60 mm	80 mm	60 mm	-	-	2,5 mm	32x13-50x13 mm	8/4,5	-	-	Steel	S350
Angle bracket	07236	100 per box	-	50 mm	50 mm	60 mm	-	-	2,5 mm	30x9-30x12 mm	12/4	-	-	Steel	DX51
Angle bracket	0723610	100 per box	-	50 mm	50 mm	58 mm	-	-	2 mm	30x9-30x12 mm	12/4	-	-	Steel	DX51
Angle bracket	07237	50 per box	-	90 mm	150 mm	60 mm	-	-	2,5 mm	30x11 mm	12/4-8/6-5/9-2/11	-	-	Steel	DX51
Angle bracket	072375	50 per box	-	40 mm	200 mm	60 mm	-	-	2,5 mm	11x30 mm	12/4-8/6-5/9-2/11	-	-	Steel	DX51
Concrete angle bracket	072401	75 per bag	-	45 mm	80 mm	72 mm	-	-	4 mm	7x30-13x67 diag. mm	4/4,5	-	-	Steel	S350
Concrete angle bracket	072403	75 per bag	-	45 mm	80 mm	72 mm	-	-	4 mm	11x67 dia. mm	4/4	11x67 mm	-	Steel	S350
Concrete angle bracket	072405	50 per bag	-	80 mm	80 mm	72 mm	-	-	4 mm	11x67 dia. mm	6/4	11x67 mm	-	Steel	S350
Concrete angle bracket	072406	50 per bag	-	80 mm	80 mm	72 mm	-	-	4 mm	7x60-13x67 diag. mm	6/4,5	13x67 mm	-	Steel	S350
Concrete angle bracket	072407	30 per bag	-	80 mm	80 mm	100 mm	-	-	5 mm	2/8x50-13x50 diag. mm	-	13x50 mm	-	Steel	S350
Concrete angle bracket	072408	20 per bag	-	80 mm	80 mm	100 mm	-	-	8 mm	2/8x50-13x50 diag. mm	-	-	-	Steel	S315
Angle bracket	07241	25 per box	-	55 mm	105 mm	50 mm	-	-	5 mm	40x13 mm	4/6-1/11	-	-	Steel	DX51
Concrete angle bracket	07242	50 per box	-	55 mm	80 mm	40 mm	-	-	4 mm	30x9 mm	2/6-1/9	-	-	Steel	S350
Concrete angle bracket	07243	50 per box	-	30 mm	100 mm	60 mm	-	-	4 mm	40x13 mm	8/5,5	-	-	Steel	S350
Angle bracket	072455	25 per box	-	60 mm	60 mm	60 mm	-	-	5 mm	4/25x9 mm	-	-	-	Steel	DX51
Concrete angle bracket	07246	25 per box	-	65 mm	105 mm	60 mm	-	-	4 mm	40x13 mm	10/4-1/9	-	-	Steel	S350
Concrete angle bracket	07247	25 per box	-	65 mm	155 mm	60 mm	-	-	4 mm	40x13 mm	13/4-2/9	-	-	Steel	S350
Concrete angle bracket	0724812	10 per box	-	95 mm	210 mm	60 mm	-	-	6 mm	60x9-180x12 mm	4/6,5-5/7	-	-	Steel	DX51
Concrete angle bracket	0724813	10 per box	-	95 mm	180 mm	60 mm	-	-	6 mm	60x9-145x12 open mm	4/6,5-4/7	-	-	Steel	DX51
Concrete angle bracket	0724814	10 per box	-	65 mm	180 mm	60 mm	-	-	6 mm	145x12 open mm	4/6-2/9-1/13	-	-	Steel	DX51
Angle bracket	0724815	10 per box	-	70 mm	140 mm	65 mm	-	-	5 mm	2/12x12 vierkant mm	1/5-1/7	-	2/12x12 mm	Steel	DX51
Concrete angle bracket	0724818	10 per box	-	80 mm	190 mm	60 mm	-	-	6 mm	65x13 mm	4/9-1/11-2/14	-	-	Steel	DX51
Concrete angle bracket	0724819	10 per box	-	80 mm	225 mm	60 mm	-	-	6 mm	65x13 mm	4/9-1/11-3/14	-	-	Steel	DX51
Concrete angle bracket	0724822	10 per box	-	95 mm	210 mm	60 mm	-	-	5 mm	60x9-180x12 mm	4/6,5-5/7	-	-	Steel	S350
Concrete angle bracket	0724832	10 per box	-	80 mm	190 mm	60 mm	-	-	8 mm	65x13 mm	4/9-1/11-2/14	-	-	Steel	S315
Concrete angle bracket	0724833	10 per box	-	80 mm	225 mm	60 mm	-	-	8 mm	65x13 mm	4/9-1/11-3/14	-	-	Steel	S315
Angle bracket	074460	25 per box	-	40 mm	115 mm	60 mm	-	-	5 mm	2/20x9 mm	3/9	-	-	Steel	S235
Angle bracket	0759915	5 per bunch	-	100 mm	150 mm	100 mm	-	-	10 mm	-	2/10-2/16	-	-	Steel	S315
Angle bracket	0759920	5 per bunch	-	100 mm	200 mm	100 mm	-	-	10 mm	-	2/10-3/16	-	-	Steel	S315
Angle bracket	0758879	10 per bag	-	75 mm	175 mm	100 mm	-	-	8 mm	13x80 mm	4/9	-	-	Steel	S315
Angle bracket	0759746	25 per bag	-	40 mm	150 mm	70 mm	-	-	10 mm	65x13 mm	2/9-1/11	-	-	Steel	S315
Concrete angle bracket	07587660	25 per bag	-	60 mm	100 mm	70 mm	-	-	8 mm	65x13 mm	2/9-1/11	-	-	Steel	S315
Concrete angle bracket	0758767	25 per bag	-	60 mm	100 mm	70 mm	-	-	8 mm	70x17 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759777	15 per bag	-	100 mm	170 mm	70 mm	-	-	10 mm	65x13 mm	4/9-2/13	-	-	Steel	S315
Angle bracket	0759845	20 per bag	-	40 mm	150 mm	80 mm	-	-	10 mm	50x17 dia. mm	2/9-1/11	50x17 mm	-	Steel	S315
Angle bracket	0758791	10 per bunch	-	200 mm	210 mm	70 mm	-	-	8 mm	70x17 mm	4/9-6/11-5/13	-	-	Steel	S315
Concrete angle bracket	0758867	25 per bag	-	60 mm	100 mm	80 mm	-	-	8 mm	70x17 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759750	20 per bag	-	60 mm	100 mm	70 mm	-	-	10 mm	65x13 mm	2/9-1/11	-	-	Steel	S315
Concrete angle bracket	0758877	25 per bag	-	70 mm	120 mm	80 mm	-	-	8 mm	70x17 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759755	20 per box	-	70 mm	120 mm	70 mm	-	-	10 mm	65x13 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759774	10 per box	-	140 mm	170 mm	70 mm	-	-	10 mm	65x13 mm	8/9-3/13	-	-	Steel	S315
Angle bracket	0759778	10 per bag	-	120 mm	170 mm	70 mm	-	-	10 mm	13x65 mm	6/9-2/13	-	-	Steel	S315
Angle bracket	0759779	5 per bunch	-	160 mm	170 mm	70 mm	-	-	10 mm	65x13 mm	10/9-3/13	-	-	Steel	S315
Angle bracket	0759791	7 per bunch	-	200 mm	210 mm	70 mm	-	-	10 mm	70x17 mm	4/9-6/11-5/13	-	-	Steel	S315
Angle bracket	0759865	20 per bag	-	60 mm	100 mm	80 mm	-	-	10 mm	50x17 dia. mm	2/9-1/11	50x17 mm	-	Steel	S315
Angle bracket	0759875	20 per bag	-	70 mm	120 mm	80 mm	-	-	10 mm	50x17 dia. mm	2/9-1/11	50x17 mm	-	Steel	S315
Angle bracket	0759877	25 per bag	-	70 mm	120 mm	80 mm	-	-	10 mm	70x17 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759879	5 per bunch	-	80 mm	200 mm	100 mm	-	-	10 mm	13x100 mm	4/10	-	-	Steel	S315
Angle bracket	0758880	10 per bag	-	80 mm	200 mm	100 mm	-	-	8 mm	13x100 mm	4/10	-	-	Steel	S315
	01721	10 per box	224 mm	-	-	-	114 mm	140 mm	2,5 mm	-	20/8,5-2/13	-	-	Steel	S350
Concrete angle bracket	0756440	1 piece	-	400 mm	400 mm	80 mm	-	-	6 mm	-	6/50x20	-	-	Steel	S235
Concrete angle bracket articulated	0756441	1 piece	-	400 mm	400 mm	80 mm	-	-	6 mm	-	6/50x20	-	-	Steel	S235
Angle bracket ridged	072391	50 per box	-	90 mm	150 mm	60 mm	-	-	2,5 mm	11x30 mm	12/4-8/6-5/9-2/11	-	-	Steel	DX51
Angle bracket ridged	072291	50 per box	-	150 mm	150 mm	60 mm	-	-	2,5 mm	2/11x30 mm	15/4-10/6-5/9	-	-	Steel	DX51
	0724912	100 per box	-	50 mm	90 mm	60 mm	-	-	2,5 mm	2/10,5x30 mm	8/5	-	-	Steel	DX51
