Concrete angle bracket

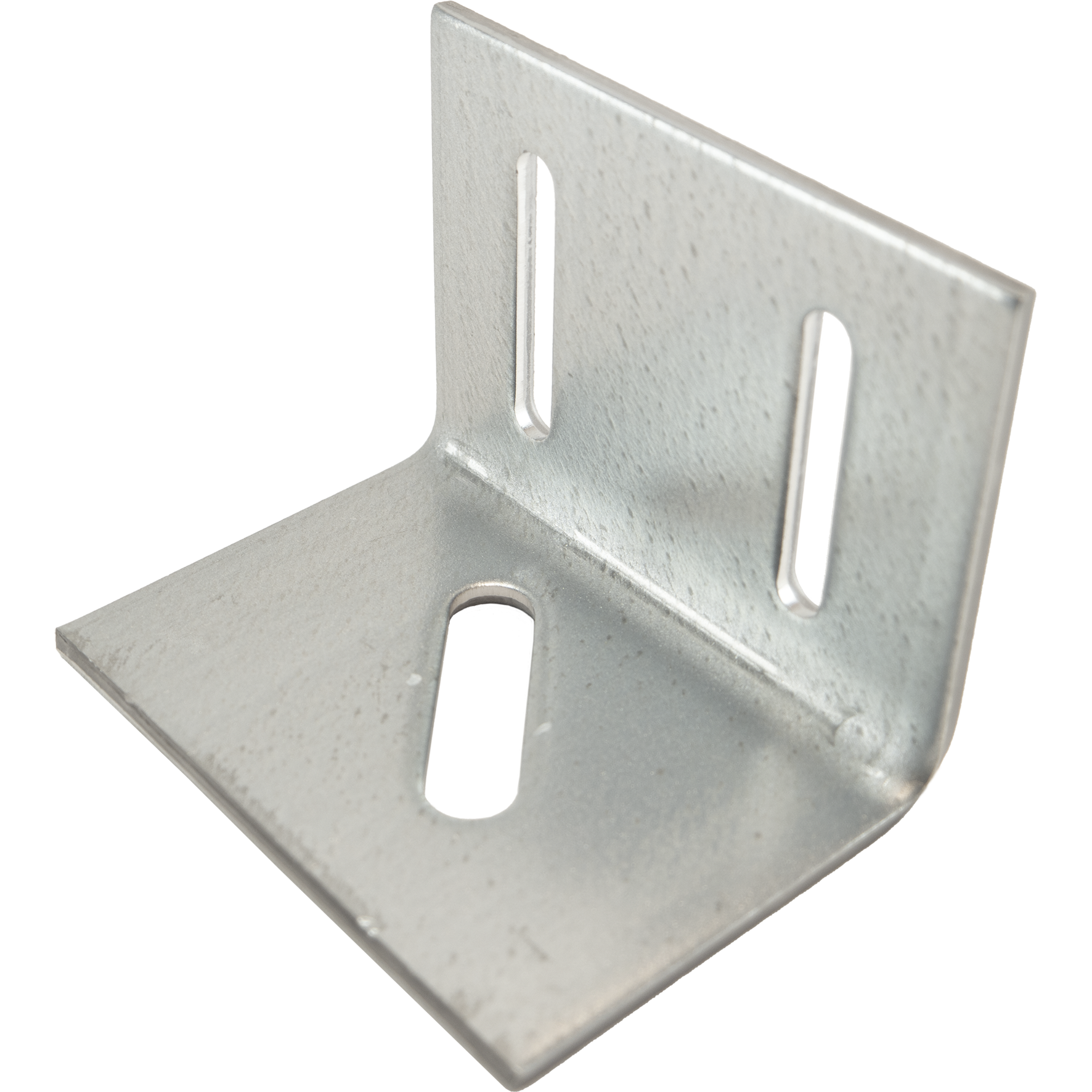

Heavy corner anchor that is primarily used for bottom lintel mounting of large window frames. The slotted hole in the corner anchor makes positioning the corner anchor easier.

Length
136 mm
224 mm
Length 1
Length 2
Width
Width 1
75 mm
114 mm
Width 2
75 mm
140 mm
Thickness
Slotted hole
Slotted holes diagonal
Material
RVS 304
RVS 316
Steel
Steel Quality
Surface treatment

Details & dimensions

Article

Article number072407
EAN code8714318079635

Packaging

EAN code8714318079659
Packaging30 per bag
Length400 mm
Width300 mm
Height200 mm

Dimensions

Concrete angle bracket

Length 1 (l1)80 mm
Length 2 (l2)80 mm
Width (b)100 mm
Thickness (d)5 mm
Slotted hole2/8x50-13x50 diag. mm
Slotted holes diagonal13x50 mm
MaterialSteel
Steel QualityS350
Surface treatmentTV
