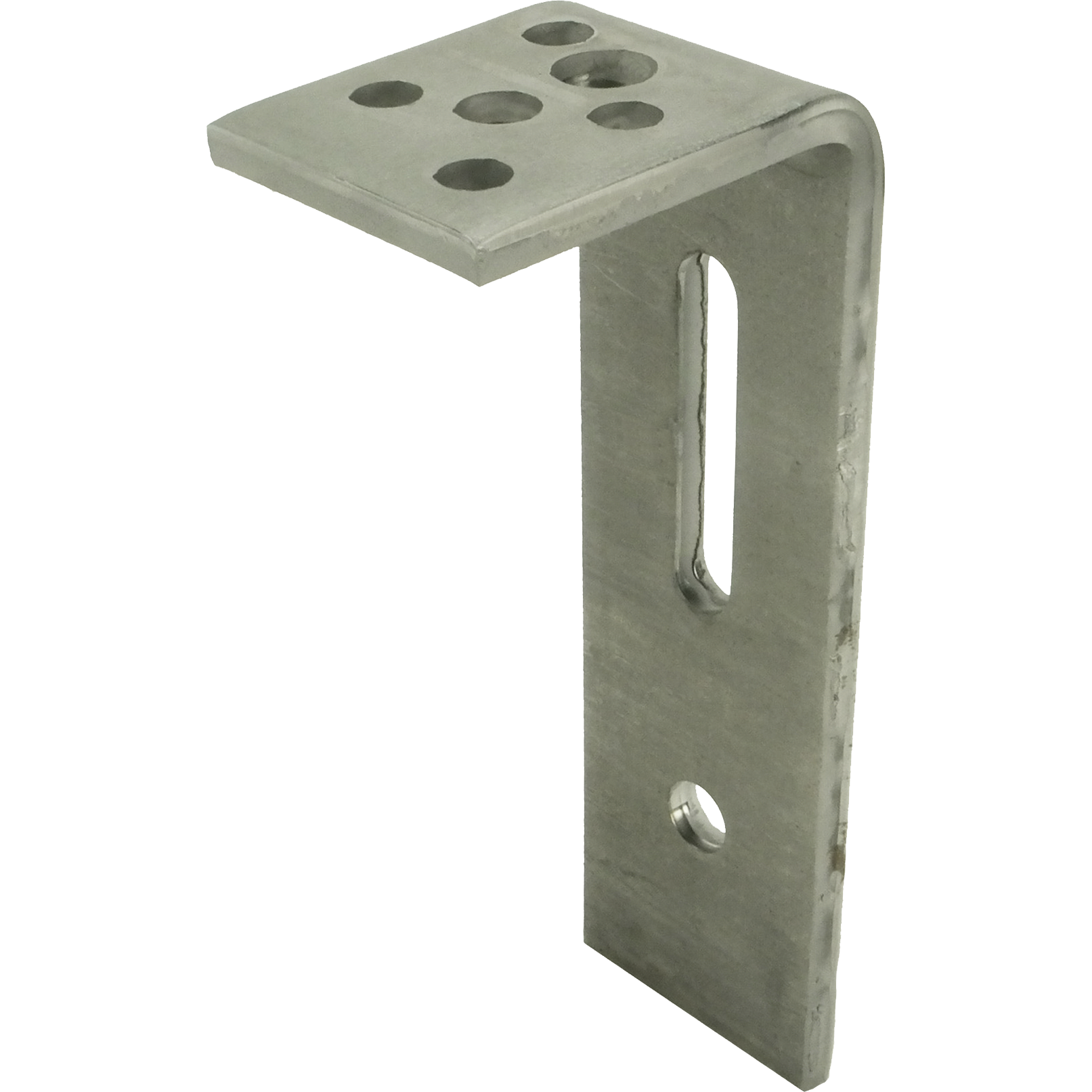

Concrete angle bracket

Heavy corner anchor with a hole pattern that matches the commonly used fasteners. The slotted hole allows for simple height adjustment. These corner anchors are manufactured from thick steel making them able to take high loads.

Length
136 mm
224 mm
Length 1
Length 2
Width
Width 1
75 mm
114 mm
Width 2
75 mm
140 mm
Thickness
Slotted hole
Slotted holes diagonal
Material
RVS 304
RVS 316
Steel
Steel Quality
Surface treatment

Details & dimensions

Article

Article number0724832
EAN code8714318024154

Packaging

EAN code8714318127367
Packaging10 per box
Length240 mm
Width170 mm
Height70 mm

Dimensions

Concrete angle bracket

Length 1 (l1)80 mm
Length 2 (l2)190 mm
Width (b)60 mm
Thickness (d)8 mm
Slotted hole65x13 mm
Hole pattern4/9-1/11-2/14
MaterialSteel
Steel QualityS315
Surface treatmentTV
