Angle bracket

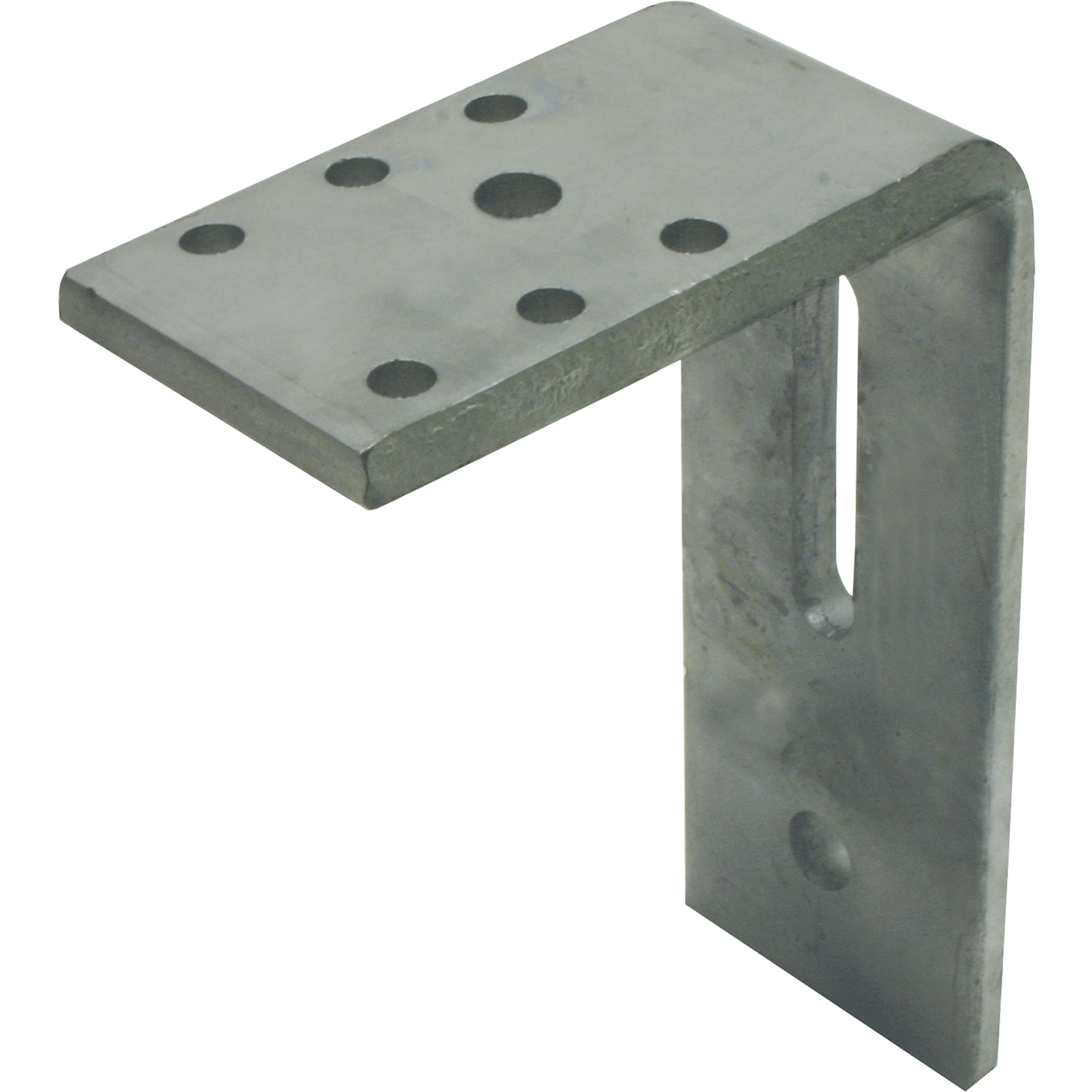

Heavy corner anchor with diagonal slotted hole, primarily used for bottom lintel mounting of window frames. The corner anchor has a straight and a diagonal slotted hole for easy positioning.

Length

136 mm

224 mm

Length 1

Length 2

Width

Width 1

75 mm

114 mm

Width 2

75 mm

140 mm

Thickness

Slotted hole

Slotted holes diagonal

Material

RVS 304

RVS 316

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number0759778

EAN code8714318030810

Packaging

EAN code8714318082192

Packaging10 per bag

Length370 mm

Width200 mm

Height70 mm

Dimensions

Angle bracket

Length 1 (l1)120 mm

Length 2 (l2)170 mm

Width (b)70 mm

Thickness (d)10 mm

Slotted hole13x65 mm

Hole pattern6/9-2/13

MaterialSteel

Steel QualityS315

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 18

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Length	Length 1	Length 2	Width	Width 1	Width 2	Thickness	Slotted hole	Hole pattern	Slotted holes diagonal	Square hole	Material	Steel Quality	Surface treatment
Angle bracket	070220	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	Steel	S350
Angle bracket ridged	070229	50 per box	-	150 mm	150 mm	60 mm	-	-	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	Steel	S350
Angle bracket ridged	070230	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	Steel	S350
Angle bracket	070301	100 per box	-	40 mm	60 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	Steel	S350
Angle bracket	070302	100 per box	-	80 mm	100 mm	60 mm	-	-	2.5 mm	2/50x13 mm	12/5-2/7	-	-	Steel	S350
	01711	30 per box	136 mm	-	-	-	75 mm	75 mm	2,5 mm	-	12/7-2/13	-	-	Steel	S350
Angle bracket	07122	100 per box	-	90 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket ridged	07123	100 per box	-	90 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket ridged	07124	100 per box	-	60 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	RVS 316	W-Nr.:1.4404	-
Angle bracket	07130	100 per box	-	40 mm	60 mm	60 mm	-	-	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07131	100 per box	-	40 mm	60 mm	60 mm	-	-	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	RVS 316	W-Nr.:1.4404	-
Angle bracket	07132	100 per box	-	40 mm	100 mm	60 mm	-	-	2 mm	40x12 mm	12/4-1/11	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07136	100 per box	-	50 mm	50 mm	60 mm	-	-	2 mm	30x9-30x12 mm	12/4	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07149	100 per box	-	50 mm	90 mm	60 mm	-	-	2 mm	12x4-24x6-24x8,5 mm	6/4-4/6-2/9	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	072215	100 per box	-	70 mm	70 mm	60 mm	-	-	2 mm	25x11 mm	1/9-8/7-4/5	-	-	Steel	DX51
Angle bracket ridged	072216	100 per box	-	70 mm	70 mm	60 mm	-	-	2 mm	25x11 mm	1/9-8/7-4/5	-	-	Steel	DX51
Angle bracket	072220	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	Steel	DX51
Angle bracket	072222	100 per box	-	90 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	Steel	DX51
Angle bracket ridged	072230	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	Steel	DX51
Angle bracket ridged	072232	100 per box	-	90 mm	90 mm	60 mm	-	-	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	Steel	DX51
Angle bracket ridged	072233	100 per box	-	90 mm	90 mm	60 mm	-	-	2,5 mm	11x30 mm	10/4-6/6-4/9-1/11	-	-	Steel	DX51
Fish plate	07225	50 per box	-	125 mm	125 mm	46 mm	-	-	2,5 mm	20x10 mm	10/4-6/6-1/11	-	-	Steel	DX51
Fish plate ridged	07226	50 per box	-	125 mm	125 mm	60 mm	-	-	2,5 mm	20x10 mm	10/4-6/6-1/11	-	-	Steel	DX51
Fish plate ridged	072261	50 per box	-	125 mm	125 mm	46 mm	-	-	2,5 mm	10x20 mm	10/4-6/6-1/11	-	-	Steel	DX51
Angle bracket	07228	50 per box	-	150 mm	150 mm	60 mm	-	-	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	Steel	DX51
Angle bracket ridged	07229	50 per box	-	150 mm	150 mm	60 mm	-	-	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	Steel	DX51
Angle bracket ridged	07244	100 per box	-	125 mm	125 mm	30 mm	-	-	2 mm	-	10/4-2/9	-	-	Steel	DX51
Angle bracket ridged	07245	100 per box	-	160 mm	160 mm	30 mm	-	-	2 mm	-	12/4-1/7-2/9	-	-	Steel	DX51
Angle bracket	07249	100 per box	-	50 mm	90 mm	60 mm	-	-	2,5 mm	12x4-24x6-24x8,5 mm	6/4-4/6-2/9	-	-	Steel	DX51
Angle bracket 100°	072491	100 per box	-	50 mm	90 mm	60 mm	-	-	2,5 mm	2/30x10,5 mm	8/5	-	-	Steel	DX51
Angle bracket	072492	100 per box	-	50 mm	90 mm	60 mm	-	-	2,5 mm	4x12-6x24-8,5x24 mm	6/4-4/6-2/9	-	-	Steel	DX51
Angle bracket	072300	50 per box	-	27 mm	68 mm	60 mm	-	-	2 mm	40x13 mm	6/5,3-1/9	-	-	Steel	DX51
Angle bracket	072301	100 per box	-	40 mm	60 mm	60 mm	-	-	2,5 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	Steel	DX51
Angle bracket	072302	100 per box	-	40 mm	60 mm	60 mm	-	-	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	Steel	DX51
Angle bracket	072303	100 per box	-	40 mm	60 mm	60 mm	-	-	2,5 mm	11x30 mm	10/4-2/6-2/9-1/11	-	-	Steel	DX51
Angle bracket	07231	100 per box	-	60 mm	60 mm	60 mm	-	-	2 mm	2/30x11 mm	10/4,5-4/6,5	-	-	Steel	DX51
Angle bracket	07232	100 per box	-	40 mm	100 mm	60 mm	-	-	2,5 mm	40x12 mm	12/4-1/11	-	-	Steel	DX51
Angle bracket	07233	100 per box	-	50 mm	75 mm	60 mm	-	-	2 mm	-	8/4-4/6-2/9	-	-	Steel	DX51
Angle bracket	07234	100 per box	-	40 mm	80 mm	46 mm	-	-	2,5 mm	30x9 mm	6/6	-	-	Steel	DX51
Angle bracket	072350	100 per box	-	50 mm	110 mm	60 mm	-	-	3 mm	32x11-2/40x11 dia. mm	10/5	2/50x13 mm	-	Steel	S350
Angle bracket	072354	100 per box	-	55 mm	85 mm	60 mm	-	-	2,5 mm	9x32-9x50 mm	10/5	-	-	Steel	S350
Angle bracket	072355	100 per box	-	60 mm	80 mm	60 mm	-	-	2,5 mm	32x13-50x13 mm	8/4,5	-	-	Steel	DX51
Angle bracket	072356	100 per box	-	60 mm	80 mm	60 mm	-	-	2,5 mm	32x13-50x13 mm	8/4,5	-	-	Steel	S350
Angle bracket	07236	100 per box	-	50 mm	50 mm	60 mm	-	-	2,5 mm	30x9-30x12 mm	12/4	-	-	Steel	DX51
Angle bracket	0723610	100 per box	-	50 mm	50 mm	58 mm	-	-	2 mm	30x9-30x12 mm	12/4	-	-	Steel	DX51
Angle bracket	07237	50 per box	-	90 mm	150 mm	60 mm	-	-	2,5 mm	30x11 mm	12/4-8/6-5/9-2/11	-	-	Steel	DX51
Angle bracket	072375	50 per box	-	40 mm	200 mm	60 mm	-	-	2,5 mm	11x30 mm	12/4-8/6-5/9-2/11	-	-	Steel	DX51
Concrete angle bracket	072401	75 per bag	-	45 mm	80 mm	72 mm	-	-	4 mm	7x30-13x67 diag. mm	4/4,5	-	-	Steel	S350
Concrete angle bracket	072403	75 per bag	-	45 mm	80 mm	72 mm	-	-	4 mm	11x67 dia. mm	4/4	11x67 mm	-	Steel	S350
Concrete angle bracket	072405	50 per bag	-	80 mm	80 mm	72 mm	-	-	4 mm	11x67 dia. mm	6/4	11x67 mm	-	Steel	S350
Concrete angle bracket	072406	50 per bag	-	80 mm	80 mm	72 mm	-	-	4 mm	7x60-13x67 diag. mm	6/4,5	13x67 mm	-	Steel	S350
Concrete angle bracket	072407	30 per bag	-	80 mm	80 mm	100 mm	-	-	5 mm	2/8x50-13x50 diag. mm	-	13x50 mm	-	Steel	S350
Concrete angle bracket	072408	20 per bag	-	80 mm	80 mm	100 mm	-	-	8 mm	2/8x50-13x50 diag. mm	-	-	-	Steel	S315
Angle bracket	07241	25 per box	-	55 mm	105 mm	50 mm	-	-	5 mm	40x13 mm	4/6-1/11	-	-	Steel	DX51
Concrete angle bracket	07242	50 per box	-	55 mm	80 mm	40 mm	-	-	4 mm	30x9 mm	2/6-1/9	-	-	Steel	S350
Concrete angle bracket	07243	50 per box	-	30 mm	100 mm	60 mm	-	-	4 mm	40x13 mm	8/5,5	-	-	Steel	S350
Angle bracket	072455	25 per box	-	60 mm	60 mm	60 mm	-	-	5 mm	4/25x9 mm	-	-	-	Steel	DX51
Concrete angle bracket	07246	25 per box	-	65 mm	105 mm	60 mm	-	-	4 mm	40x13 mm	10/4-1/9	-	-	Steel	S350
Concrete angle bracket	07247	25 per box	-	65 mm	155 mm	60 mm	-	-	4 mm	40x13 mm	13/4-2/9	-	-	Steel	S350
Concrete angle bracket	0724812	10 per box	-	95 mm	210 mm	60 mm	-	-	6 mm	60x9-180x12 mm	4/6,5-5/7	-	-	Steel	DX51
Concrete angle bracket	0724813	10 per box	-	95 mm	180 mm	60 mm	-	-	6 mm	60x9-145x12 open mm	4/6,5-4/7	-	-	Steel	DX51
Concrete angle bracket	0724814	10 per box	-	65 mm	180 mm	60 mm	-	-	6 mm	145x12 open mm	4/6-2/9-1/13	-	-	Steel	DX51
Angle bracket	0724815	10 per box	-	70 mm	140 mm	65 mm	-	-	5 mm	2/12x12 vierkant mm	1/5-1/7	-	2/12x12 mm	Steel	DX51
Concrete angle bracket	0724818	10 per box	-	80 mm	190 mm	60 mm	-	-	6 mm	65x13 mm	4/9-1/11-2/14	-	-	Steel	DX51
Concrete angle bracket	0724819	10 per box	-	80 mm	225 mm	60 mm	-	-	6 mm	65x13 mm	4/9-1/11-3/14	-	-	Steel	DX51
Concrete angle bracket	0724822	10 per box	-	95 mm	210 mm	60 mm	-	-	5 mm	60x9-180x12 mm	4/6,5-5/7	-	-	Steel	S350
Concrete angle bracket	0724832	10 per box	-	80 mm	190 mm	60 mm	-	-	8 mm	65x13 mm	4/9-1/11-2/14	-	-	Steel	S315
Concrete angle bracket	0724833	10 per box	-	80 mm	225 mm	60 mm	-	-	8 mm	65x13 mm	4/9-1/11-3/14	-	-	Steel	S315
Angle bracket	074460	25 per box	-	40 mm	115 mm	60 mm	-	-	5 mm	2/20x9 mm	3/9	-	-	Steel	S235
Angle bracket	0759915	5 per bunch	-	100 mm	150 mm	100 mm	-	-	10 mm	-	2/10-2/16	-	-	Steel	S315
Angle bracket	0759920	5 per bunch	-	100 mm	200 mm	100 mm	-	-	10 mm	-	2/10-3/16	-	-	Steel	S315
Angle bracket	0758879	10 per bag	-	75 mm	175 mm	100 mm	-	-	8 mm	13x80 mm	4/9	-	-	Steel	S315
Angle bracket	0759746	25 per bag	-	40 mm	150 mm	70 mm	-	-	10 mm	65x13 mm	2/9-1/11	-	-	Steel	S315
Concrete angle bracket	07587660	25 per bag	-	60 mm	100 mm	70 mm	-	-	8 mm	65x13 mm	2/9-1/11	-	-	Steel	S315
Concrete angle bracket	0758767	25 per bag	-	60 mm	100 mm	70 mm	-	-	8 mm	70x17 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759777	15 per bag	-	100 mm	170 mm	70 mm	-	-	10 mm	65x13 mm	4/9-2/13	-	-	Steel	S315
Angle bracket	0759845	20 per bag	-	40 mm	150 mm	80 mm	-	-	10 mm	50x17 dia. mm	2/9-1/11	50x17 mm	-	Steel	S315
Angle bracket	0758791	10 per bunch	-	200 mm	210 mm	70 mm	-	-	8 mm	70x17 mm	4/9-6/11-5/13	-	-	Steel	S315
Concrete angle bracket	0758867	25 per bag	-	60 mm	100 mm	80 mm	-	-	8 mm	70x17 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759750	20 per bag	-	60 mm	100 mm	70 mm	-	-	10 mm	65x13 mm	2/9-1/11	-	-	Steel	S315
Concrete angle bracket	0758877	25 per bag	-	70 mm	120 mm	80 mm	-	-	8 mm	70x17 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759755	20 per box	-	70 mm	120 mm	70 mm	-	-	10 mm	65x13 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759774	10 per box	-	140 mm	170 mm	70 mm	-	-	10 mm	65x13 mm	8/9-3/13	-	-	Steel	S315
Angle bracket	0759778	10 per bag	-	120 mm	170 mm	70 mm	-	-	10 mm	13x65 mm	6/9-2/13	-	-	Steel	S315
Angle bracket	0759779	5 per bunch	-	160 mm	170 mm	70 mm	-	-	10 mm	65x13 mm	10/9-3/13	-	-	Steel	S315
Angle bracket	0759791	7 per bunch	-	200 mm	210 mm	70 mm	-	-	10 mm	70x17 mm	4/9-6/11-5/13	-	-	Steel	S315
Angle bracket	0759865	20 per bag	-	60 mm	100 mm	80 mm	-	-	10 mm	50x17 dia. mm	2/9-1/11	50x17 mm	-	Steel	S315
Angle bracket	0759875	20 per bag	-	70 mm	120 mm	80 mm	-	-	10 mm	50x17 dia. mm	2/9-1/11	50x17 mm	-	Steel	S315
Angle bracket	0759877	25 per bag	-	70 mm	120 mm	80 mm	-	-	10 mm	70x17 mm	2/9-1/11	-	-	Steel	S315
Angle bracket	0759879	5 per bunch	-	80 mm	200 mm	100 mm	-	-	10 mm	13x100 mm	4/10	-	-	Steel	S315
Angle bracket	0758880	10 per bag	-	80 mm	200 mm	100 mm	-	-	8 mm	13x100 mm	4/10	-	-	Steel	S315
	01721	10 per box	224 mm	-	-	-	114 mm	140 mm	2,5 mm	-	20/8,5-2/13	-	-	Steel	S350
Concrete angle bracket	0756440	1 piece	-	400 mm	400 mm	80 mm	-	-	6 mm	-	6/50x20	-	-	Steel	S235
Concrete angle bracket articulated	0756441	1 piece	-	400 mm	400 mm	80 mm	-	-	6 mm	-	6/50x20	-	-	Steel	S235
Angle bracket ridged	072391	50 per box	-	90 mm	150 mm	60 mm	-	-	2,5 mm	11x30 mm	12/4-8/6-5/9-2/11	-	-	Steel	DX51
Angle bracket ridged	072291	50 per box	-	150 mm	150 mm	60 mm	-	-	2,5 mm	2/11x30 mm	15/4-10/6-5/9	-	-	Steel	DX51
	0724912	100 per box	-	50 mm	90 mm	60 mm	-	-	2,5 mm	2/10,5x30 mm	8/5	-	-	Steel	DX51
