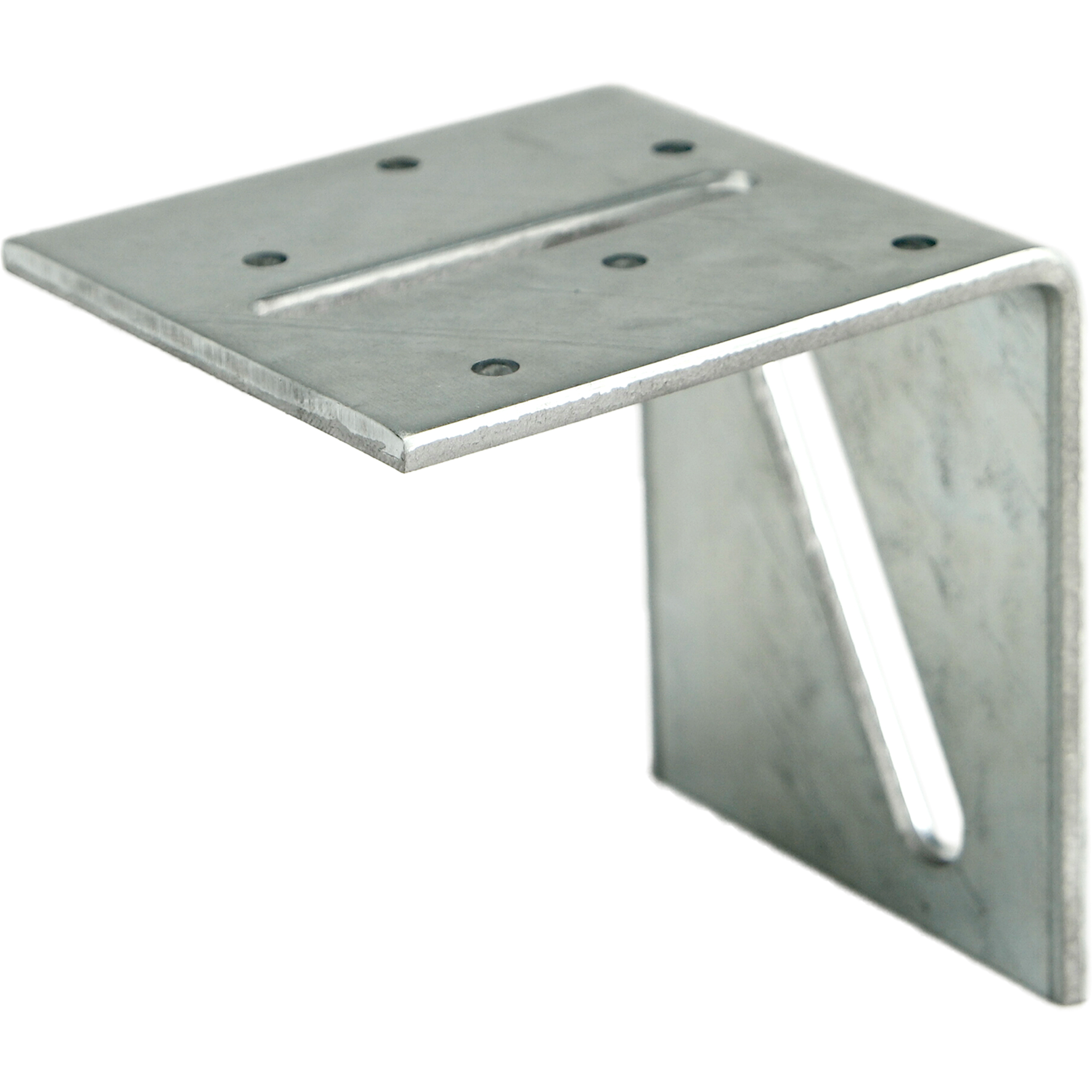

Concrete angle bracket
Heavy corner anchor with diagonal slotted hole is primarily used for heavy frame bottom lintel mounting. The corner anchor has a diagonal slotted hole that makes positioning easier. Due to the smart hole pattern, fasteners from reputable brands are applicable.
Length
Length 1
Length 2
Width
Width 1
Width 2
Thickness
Slotted hole
Slotted holes diagonal
Material
Steel Quality
Surface treatment
Details & dimensions
Article
Article number072405
EAN code8714318061708
Packaging
EAN code8714318061715
Packaging50 per bag
Length400 mm
Width300 mm
Height200 mm
Dimensions
Concrete angle bracket
Length 1 (l1)80 mm
Length 2 (l2)80 mm
Width (b)72 mm
Thickness (d)4 mm
Slotted hole11x67 dia. mm
Hole pattern6/4
Slotted holes diagonal11x67 mm
MaterialSteel
Steel QualityS350
Surface treatment
