Hoekanker
Hoekanker

Angle bracket ridged

Corner anchors primarily used to secure window frames to posts and lintels. A rill is installed in the corner anchor for added strength and stability. Universally applicable and compatible with common fasteners.

Length
136 mm
224 mm
Length 1
Length 2
Width
Width 1
75 mm
114 mm
Width 2
75 mm
140 mm
Thickness
Slotted hole
Slotted holes diagonal
Material
RVS 304
RVS 316
Steel
Steel Quality
Surface treatment

Details & dimensions

Article

Article number07245
EAN code8714318017187

Packaging

EAN code8714318116415
Packaging100 per box
Length310 mm
Width260 mm
Height70 mm

Dimensions

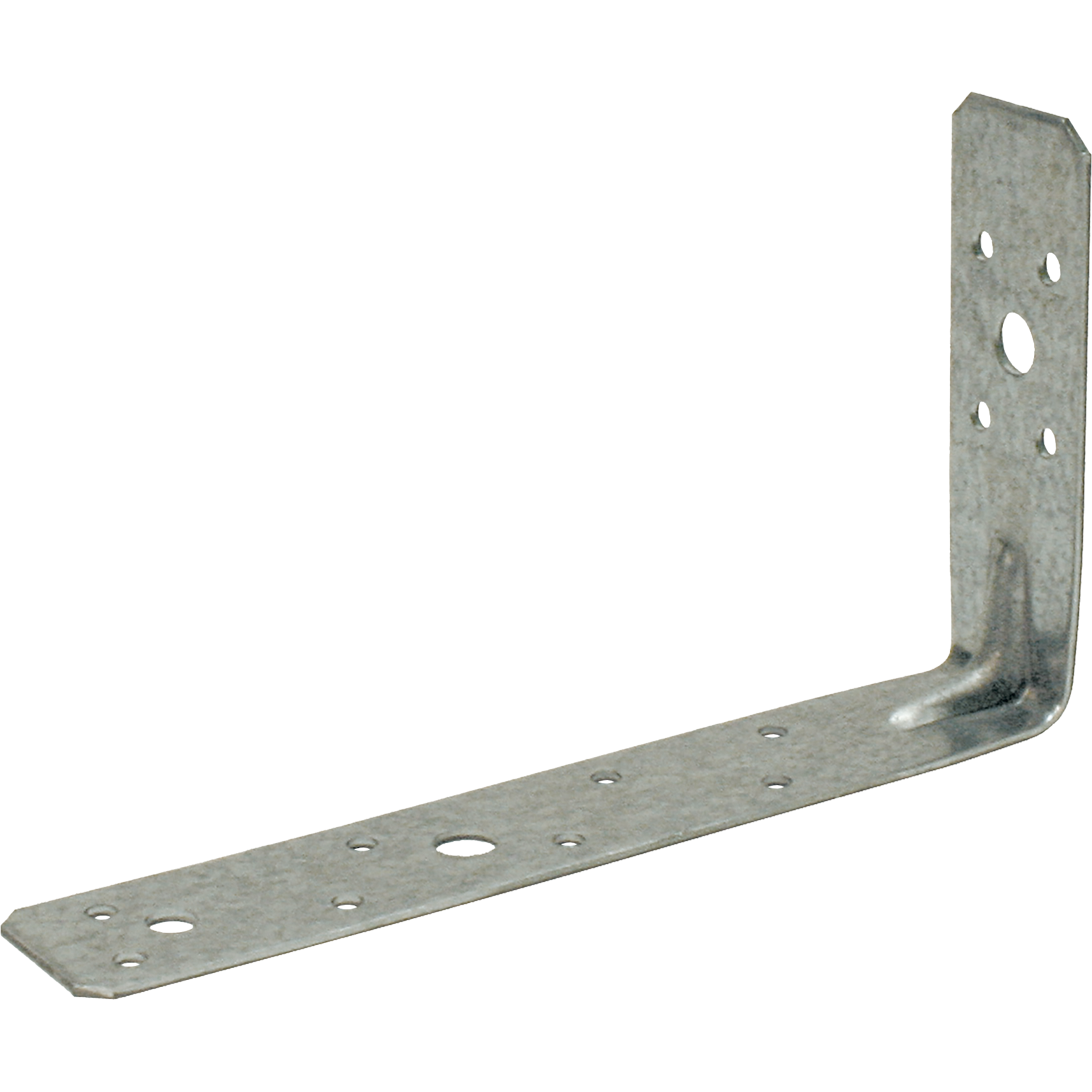

Angle bracket ridged

Length 1 (l1)160 mm
Length 2 (l2)160 mm
Width (b)30 mm
Thickness (d)2 mm
Hole pattern12/4-1/7-2/9
MaterialSteel
Steel QualityDX51
Surface treatmentSV

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 18

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.
