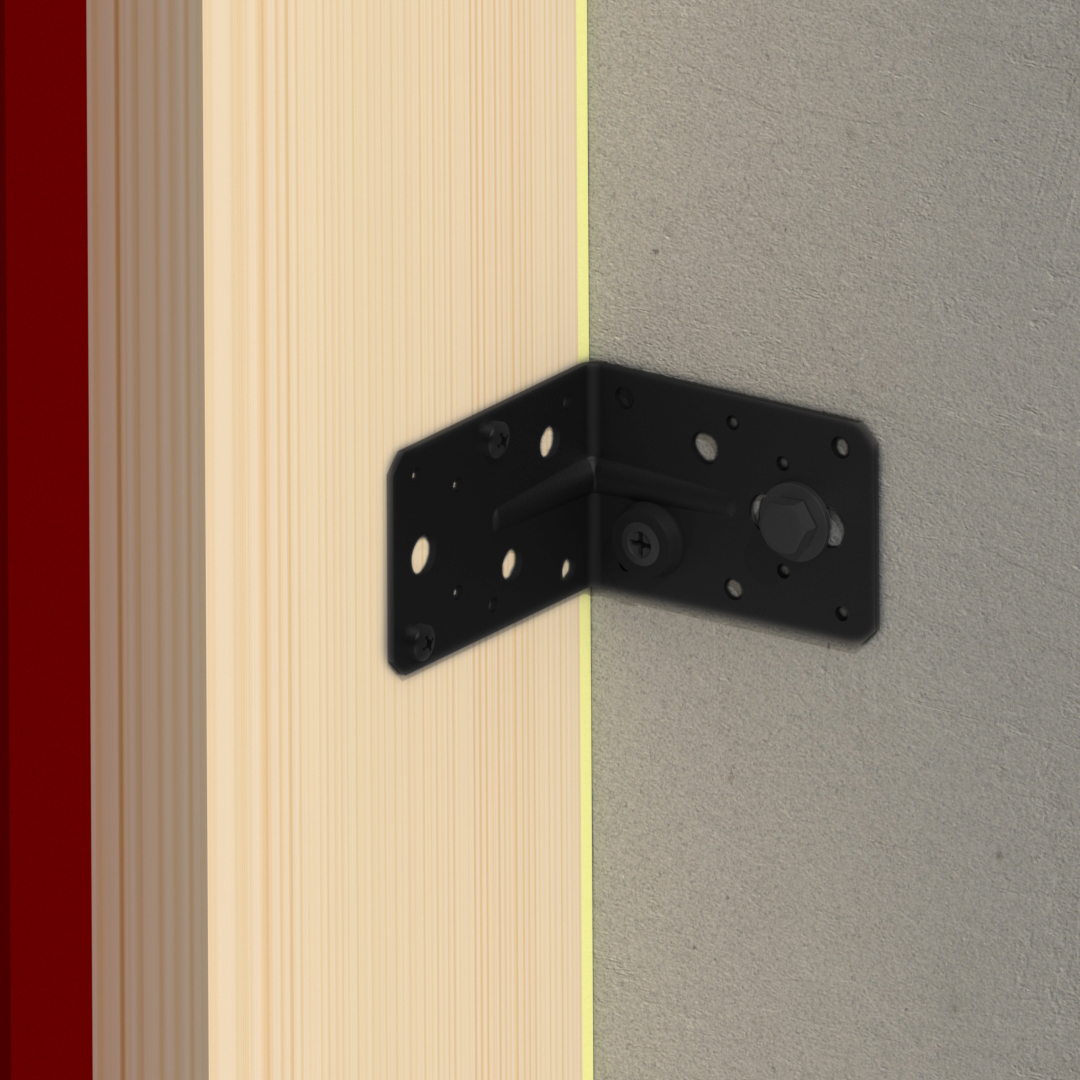

Corner anchors primarily used to secure window frames to posts and lintels. A rill is installed in the corner anchor for added strength and stability. Universally applicable and compatible with common fasteners.
Length
136 mm
224 mm
Length 1
Length 2
Width
Width 1
75 mm
114 mm
Width 2
75 mm
140 mm
Thickness
Slotted hole
Slotted holes diagonal
Material
RVS 304
RVS 316
Steel
Steel Quality
Surface treatment
Details & dimensions
Article
Article number072233
EAN code8714318080686
Packaging
EAN code8714318083656
Packaging100 per box
Length340 mm
Width265 mm
Height75 mm
Dimensions

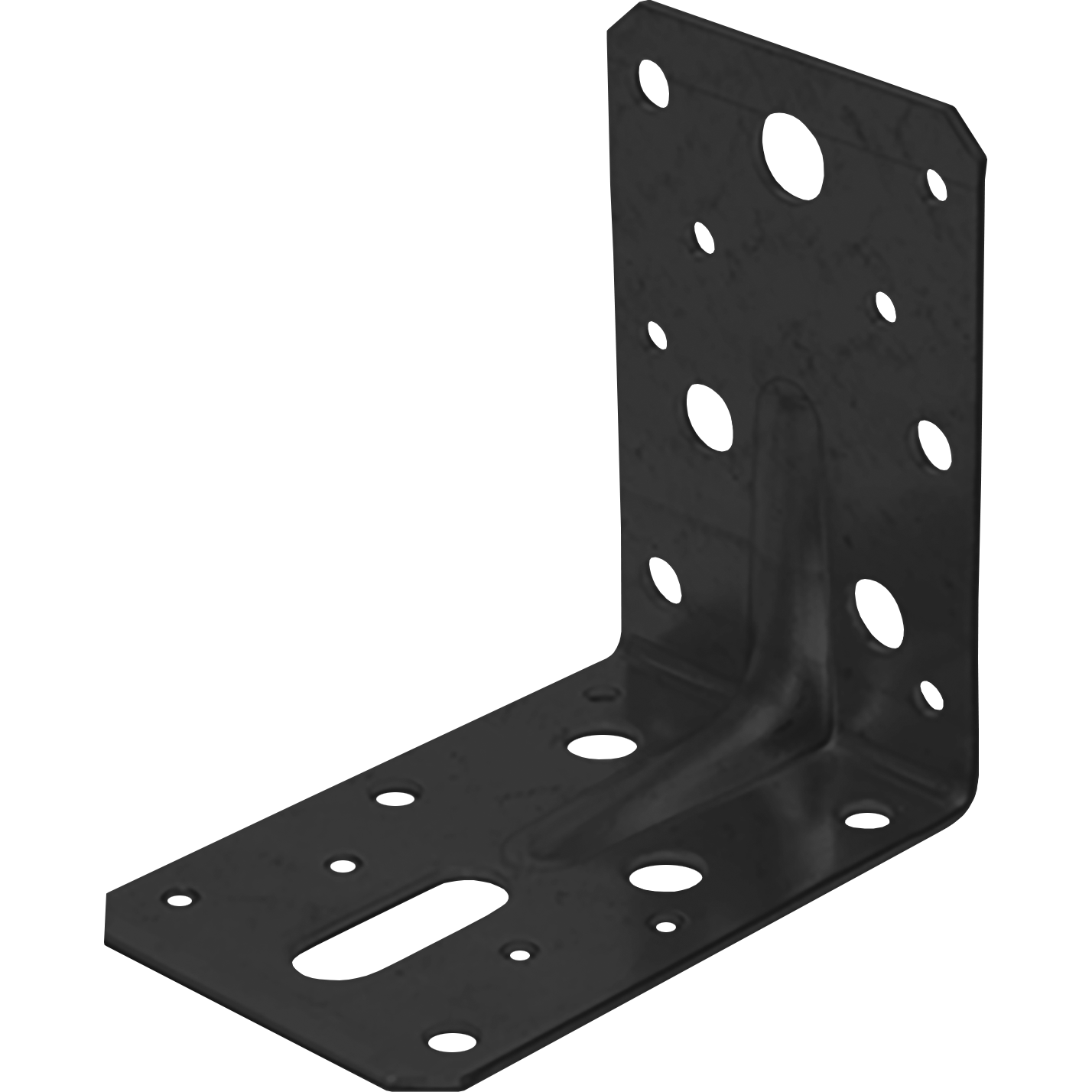

Angle bracket ridged
Length 1 (l1)90 mm
Length 2 (l2)90 mm
Width (b)60 mm
Thickness (d)2,5 mm
Slotted hole11x30 mm
Hole pattern10/4-6/6-4/9-1/11
MaterialSteel
Steel QualityDX51
Surface treatment
