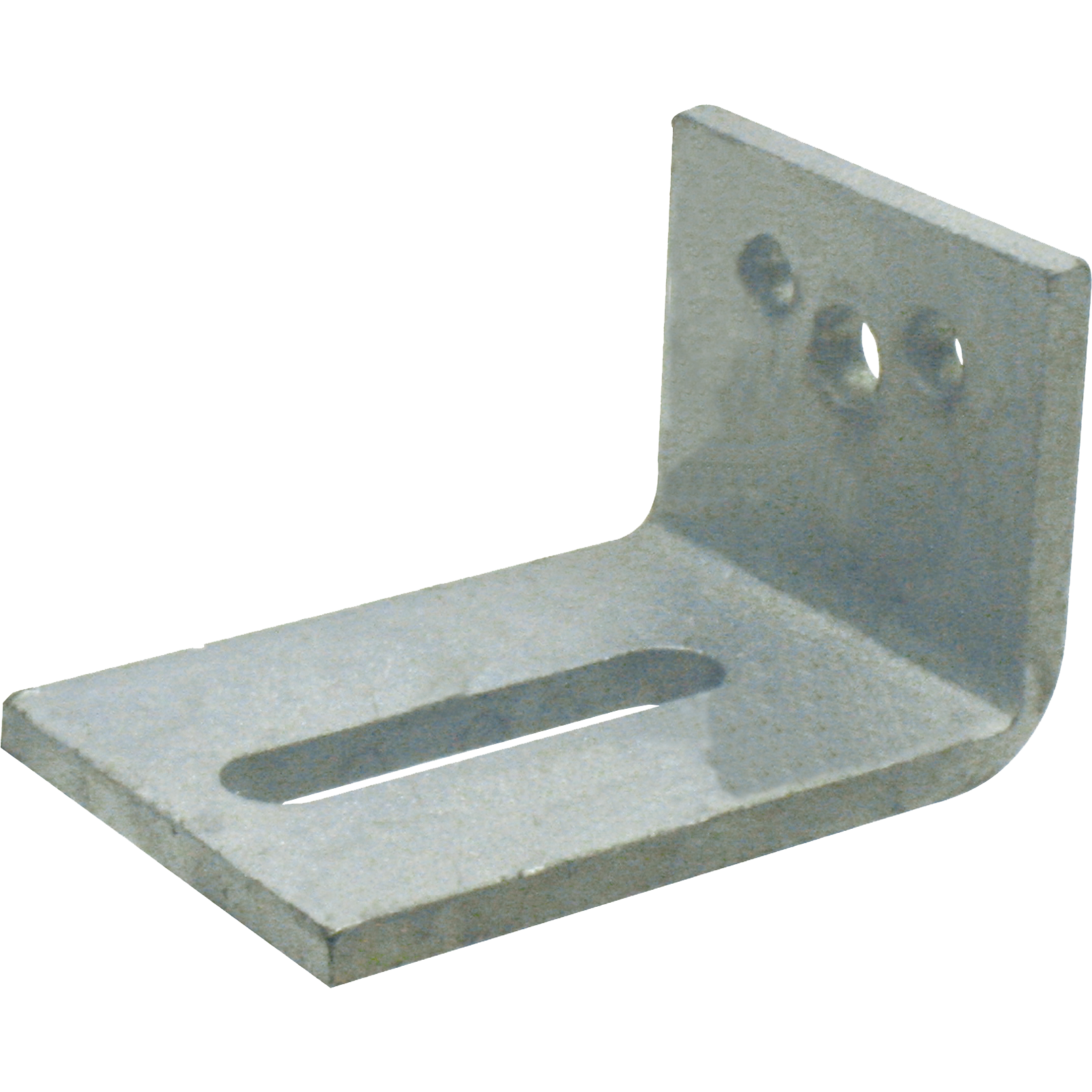

Concrete angle bracket
Heavy corner anchor with a diagonal slotted hole that is primarily used for mounting window frames to lower lintels. The corner anchor has a diagonal slotted hole that allows for easy positioning.
Length
Length 1
Length 2
Width
Width 1
Width 2
Thickness
Slotted hole
Slotted holes diagonal
Material
Steel Quality
Surface treatment
Details & dimensions
Article
Article number0758767
EAN code8714318034382
Packaging
EAN code8714318034375
Packaging25 per bag
Length360 mm
Width120 mm
Height70 mm
Dimensions
Concrete angle bracket
Length 1 (l1)60 mm
Length 2 (l2)100 mm
Width (b)70 mm
Thickness (d)8 mm
Slotted hole70x17 mm
Hole pattern2/9-1/11
MaterialSteel
Steel QualityS315
Surface treatment
