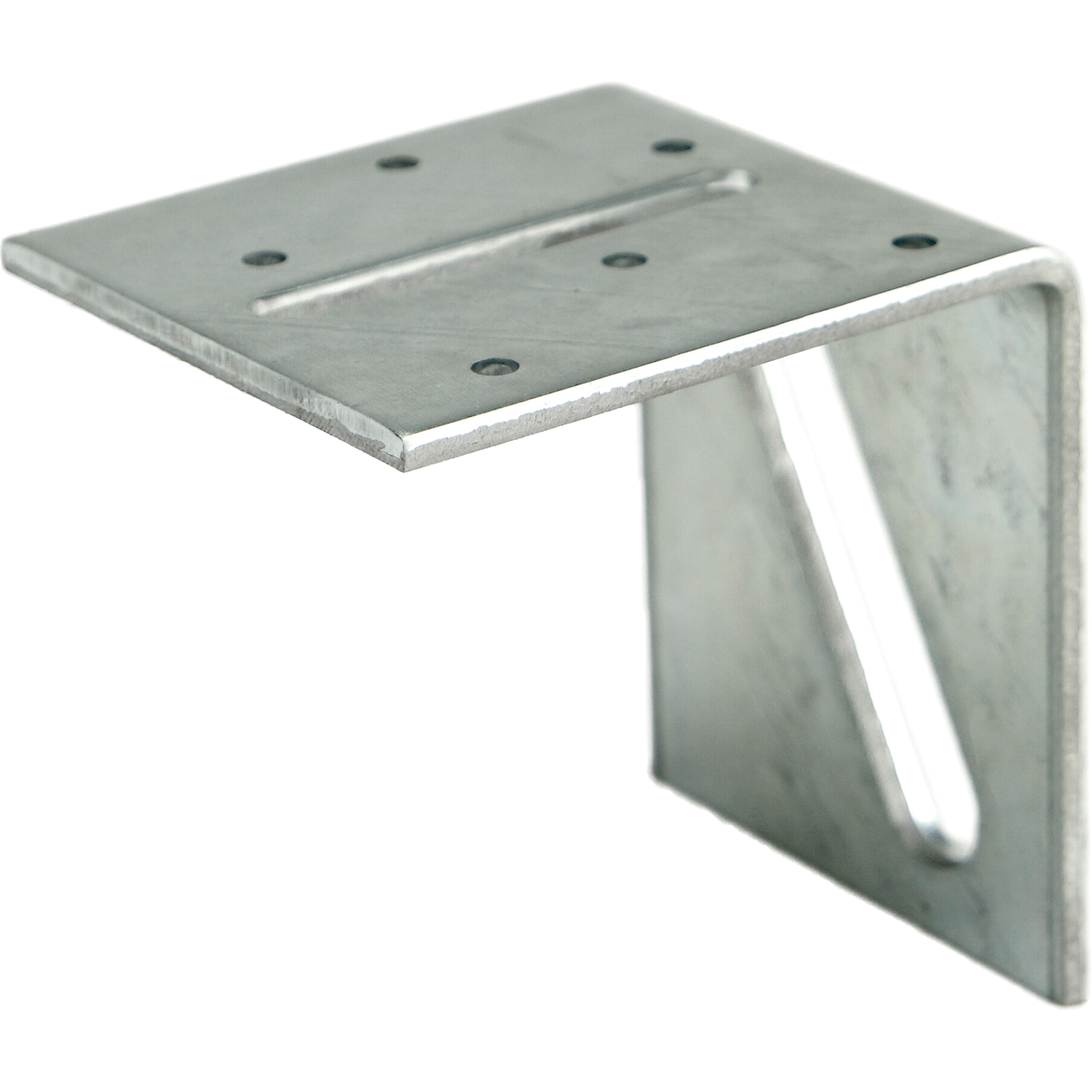

Concrete angle bracket
Heavy corner anchor that is primarily used for bottom lintel mounting of large window frames. The slotted hole in the corner anchor makes positioning the corner anchor easier.
Length
Length 1
Length 2
Width
Width 1
Width 2
Thickness
Slotted hole
Slotted holes diagonal
Material
Steel Quality
Surface treatment
Details & dimensions
Article
Article number072406
EAN code8714318078935
Packaging
EAN code8714318078942
Packaging50 per bag
Length400 mm
Width300 mm
Height200 mm
Dimensions
Concrete angle bracket
Length 1 (l1)80 mm
Length 2 (l2)80 mm
Width (b)72 mm
Thickness (d)4 mm
Slotted hole7x60-13x67 diag. mm
Hole pattern6/4,5
Slotted holes diagonal13x67 mm
MaterialSteel
Steel QualityS350
Surface treatment
